Vehicle Exploded View - APRILIA TUONO 50 RS 50 Tuono 2003-2004
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

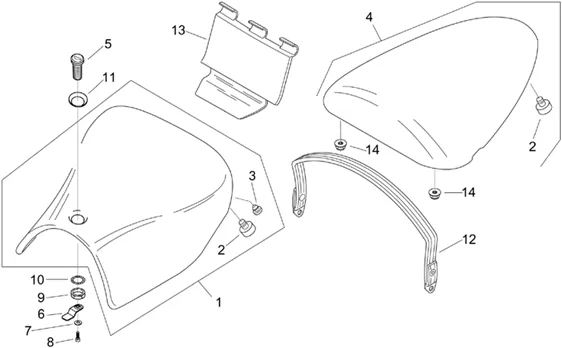

Chassis : 28.11 GROUPE SELLE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/269/RS_50_Tuono_2003-2004_28.11.PNG)
1 |
AP8229366 - SELLA PILOTA More informationQuantity required : 1 |
||||||
|
1 |
AP8229371 - SELLA PILOTA More informationQuantity required : 1 |
||||||
|
1 |
AP8229388 - SELLA PILOTA NERO/ROSSO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/8/1/img/72281.jpg)
2 |
BUFFER RUBBER DU LOGEMENT DE SEAT OEM APRILIA-AP8220349 More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/3/img/71383.jpg)
3 |
CAP RUBBER OEM PIAGGIO COMMON A LA RANGE-AP8120001 More informationQuantity required : 2 |
||||||
|
4 |
AP8129392 - SELLA PASSEGGERO More informationQuantity required : 1 |
||||||
|
4 |
AP8129406 - SELLA PASSEGGERO More informationQuantity required : 1 |
||||||
|
4 |
AP8229389 - SELLA PASSEGGERO NERA More informationQuantity required : 1 |
||||||
|
5 |
AP8202379-SERRATURA SELLA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/9/1/2/0/img/49120.jpg)
6 |
PLATINE LATCH DE SEAT OEM PIAGGIO APRILIA 50 RS 1993 > 2005-AP8135260 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/8/img/71808.jpg)
7 |
WASHER PLATE (6. 6X18X1. 6) OEM PIAGGIO COMMON A LA RANGE-AP8150015 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/0/9/0/img/97090.jpg)
8 |
SCREW BTR (6X8) OEM PIAGGIO COMMON A LA RANGE-AP8152123 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/6/8/img/50968.jpg)
9 |
NUT BAS (M19X1) OEM PIAGGIO COMMON A LA RANGE-AP8152194 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/7/0/5/4/img/57054.jpg)
10 |
WASHER EVENTAIL (D 19) DE LOCK OEM PIAGGIO COMMON A LA RANGE-AP8221312 More informationQuantity required : 1 |
||||||
|
11 |
AP8229207 - CUVETTE SERR.SELLE; More informationQuantity required : 1 |
||||||
|
12 |
AP8129393 - CINGHIA PASSEGGERO More informationQuantity required : 1 |
||||||
|
12 |
AP8129407 - CINGHIA PASSEGGERO More informationQuantity required : 1 |
||||||
|
12 |
AP8229390 - CINGHIA PASSEGGERO NERA More informationQuantity required : 1 |
||||||
|
13 |
AP8258966-ABATT. DOOR-OBJETS BLACK More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/3/img/71963.jpg)
14 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M5) OEM PIAGGIO COMMON A LA RANGE-AP81523066 More informationQuantity required : 2 |
