Vehicle Exploded View - APRILIA TUONO 50 RS 50 Tuono 2003-2004
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

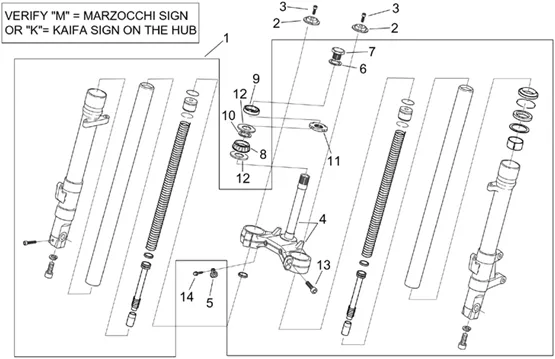

Chassis : 28.05 FOURCHE AV. I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/269/RS_50_Tuono_2003-2004_28.05.PNG)
1 |
AP8203981 - FOURCHE COMPLETE; More informationQuantity required : 1 |
||||||
|
2 |
AP8258338-CAP FORK More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/5/0/img/71850.jpg)
3 |
SCREW BTR (5X16) OEM PIAGGIO COMMON A LA RANGE-AP8150280 More informationQuantity required : 2 |
||||||
|
4 |
AP8203954-BASE WITH TUBE More informationQuantity required : 1 |
||||||
|
4 |
AP8223117 - BASE CON CANNOTTO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/9/4/img/71394.jpg)
5 |
HOSE CLAMP NYLON TYPE RILSAN 4, 5X180MM OEM PIAGGIO COMMON A LA RANGE-AP8120416 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/6/3/1/img/55631.jpg)
6 |
WASHER PLATE (24X36X2. 5) OEM PIAGGIO COMMON A LA RANGE-AP8203927 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/5/9/img/72159.jpg)
7 |
AP8203251-CAP TUBE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/6/6/img/71266.jpg)
8 |
BEARING DE STEERING OEM PIAGGIO APRILIA 50-125-250 RS 1995 >, 50-125 RX, SX 1995 >, 50-125 CLASSIC, 50-125 MX 2004 >, 125 PEGASO 1991 > 1994, 650 PEGASO 1992 > 2004-AP8110024 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/8/1/7/img/45817.jpg)
9 |
BEARING STEERING UPPER OEM PIAGGIO APRILIA 50-125 RS, RX, SX, TUONO, AF1, CLASSIC, PEGASO-AP8110025 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/6/1/img/72161.jpg)
10 |
WASHER DE STEERING OEM APRILIA 50-125 RS-AP8203550 More informationQuantity required : 1 |
||||||
|
11 |
AP8203588-BUSH LOWER FORK * More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/3/1/img/71231.jpg)
12 |
BUSH ETANCHEITE COLONNE STEERING OEM PIAGGIO APRILIA 50-125 RX, SX, RS, TUONO, 750 DORSODURO, 600-650 PEGASO-AP8104597 More informationQuantity required : 2 |
||||||
|
13 |
Vis |
||||||
|
13 |
AP8223118 - VITE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/1/img/71941.jpg)
14 |
SCREW FLANGE TH (6X12) OEM PIAGGIO COMUUN A LA RANGE-AP8152277 More informationQuantity required : 1 |
