Vehicle Exploded View - APRILIA TUONO 50 RS 50 Tuono 2003-2004
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

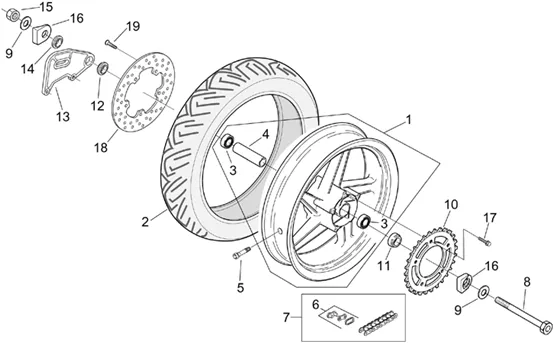

Chassis : 28.26 ROUE ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/269/RS_50_Tuono_2003-2004_28.26.PNG)
1 |
AP8128122 - RUOTA POSTER.5 RAZZE V.ROSSO More informationQuantity required : 1 |
||||||
|
1 |
AP8208806 - ROUE AR NUE V More informationQuantity required : 1 |
||||||
|
1 |
AP8208837 - RUOTA POSTERIORE NUDA V.BIANCO More informationQuantity required : 1 |
||||||
|
1 |
RUOTA POSTER.5 RAZZE V.ROSSO |
||||||
|
3 |
BEARING WHEEL REAR OEM PIAGGIO APRILIA 50 SX, RX, RS, TUONO 1999 > 2005-AP8225118 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/7/5/8/9/img/57589.jpg)
4 |
AP8225355-SPACER INT. WHEEL AR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/3/6/img/72136.jpg)
5 |
VALVE TUBELESS OEM PIAGGIO COMMON A LA RANGE-AP8201546 More informationQuantity required : 1 |
||||||
|
6 |
AP8207086 - MAILLON DE JONCTION More informationQuantity required : 1 |
||||||
|
7 |
AP8207077 - CHA?NE+MAIL.JONCTION More informationQuantity required : 1 |
||||||
|
8 |
AP8225333-WHEEL SPINDLE AR More informationQuantity required : 1 |
||||||
|
9 |
Rondelle plate |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/1/1/9/img/56119.jpg)
10 |
REAR CHAIN SPROCKET 47 TEETH "PIAGGIO GENUINE PART" APRILIA 50 RS 1999>2005, TUONO 2003>2004 -AP8207076 More informationQuantity required : 1 |
||||||
|
11 |
AP8125922-SPACER WHEEL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/7/5/8/4/img/57584.jpg)
11 |
SPACER REAR WHEEL OEM APRILIA 50 RS 2005-AP8225339 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/7/2/3/img/46723.jpg)
12 |
AP8121088 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
12 |
AP8125923-SPACER WHEEL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/8/0/5/9/img/58059.jpg)
13 |
SUPPORT-FOR REAR BRAKE CALIPER "PIAGGIO GENUINE PART" APRILIA 50 RS 1999>2005, TUONO 2003>2004 -AP8234137 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/7/5/6/1/img/57561.jpg)
14 |
SPACER DE REAR WHEEL OEM PIAGGIO APRILIA 50 RS, RX, SX 2005 <-AP8225235 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/7/5/5/9/img/57559.jpg)
15 |
NUT WHEEL SPINDLE REAR OEM PIAGGIO 50 RS 1999 > 2005, TUONO 2003 > 2004, PEGASO 1992 > 1994-AP8225208 More informationQuantity required : 1 |
||||||
|
16 |
AP8220497 - GALET GUIDE-CHA?NE; More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/8/img/71948.jpg)
17 |
SCREW FLANGE TH (8X20) OEM PIAGGIO COMMON A LA RANGE-AP8152286 More informationQuantity required : 5 |
||||||
|
18 |
AP8213317 - DISQUE FREIN ARRIERE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/4/5/3/img/56453.jpg)
19 |
AP8213418 - VIS More informationQuantity required : 5 |
