Vehicle Exploded View - APRILIA RS 50 1999-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

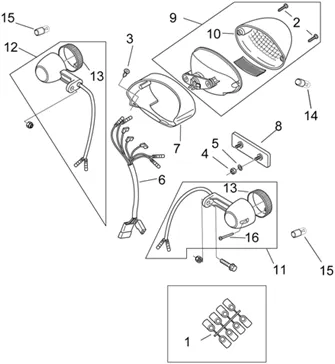

Chassis : 28.30 FEUX ARRIERE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/267/RS_50_1999-2005_28.30.PNG)
1 |
AP8249272 - SERIE CALES REG.FEU; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/4/8/img/71848.jpg)
2 |
SCREW CRUCIFORME (4. 2X20) TARAUD OEM PIAGGIO COMMON A LA RANGE-AP8150270 More informationQuantity required : 2 |
||||||
|
3 |
AP8150371 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/9/img/71839.jpg)
4 |
NUT AUTOBLOQUANT/NYLSTOP (M4) OEM PIAGGIO COMMON A LA RANGE-AP8150204 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/5/img/71825.jpg)
5 |
WASHER PLATE (4X9) OEM PIAGGIO COMMON A LA RANGE-AP8150158 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/7/5/0/3/img/47503.jpg)
6 |
WIRING FOR TAIL LIGHT "PIAGGIO GENUINE PART" APRILIA 50-125 RS 1999>2005 -AP8124489 More informationQuantity required : 1 |
||||||
|
7 |
Support phare AR; |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/8/9/6/img/45896.jpg)
8 |
AP8112916-CATADIOPTRE LAMP REAR More informationQuantity required : 1 |
||||||
|
9 |
AP8224168 - FEU ARRIERE; More informationQuantity required : 1 |
||||||
|
9 |
AP8124492 - FEU ARRIERE; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/7/3/4/0/img/57340.jpg)
10 |
LENS FOR TAIL LAMP "PIAGGIO GENUINE PART" APRILIA 50-125-250 RS 1999>2005 -AP8224277- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/7/4/3/3/img/47433.jpg)
11 |
AP8124134 - CLIGNOTANT AV DROITE; More informationQuantity required : 1 |
||||||
|
11 |
AP8127536 - INDICATORE DIREZ.ANT.DX More informationQuantity required : 1 |
||||||
|
11 |
AP8224197 - CLIGNOT.AV.DR./ARR.GA.; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/7/4/3/4/img/47434.jpg)
12 |
FLASHER-FRONT-LEFT "PIAGGIO GENUINE PART" 50-125-250 RS 1999>2005, 125 CLASSIC -AP8124135- More informationQuantity required : 1 |
||||||
|
12 |
AP8127535 - INDICATORE DIREZ.ANT.SX More informationQuantity required : 1 |
||||||
|
12 |
AP8224198-CLIGNOT. AV. GA./ARR. DR. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/2/9/1/img/56291.jpg)
13 |
CABOCHON INDICATOR OEM APRILIA 50-125-250 RS 2005 <-AP8212680 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/2/8/img/72328.jpg)
13 |
AP8224258 - VITRE CLIGNOTANT; More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/8/2/8/img/67828.jpg)
13 |
CABOCHON DE INDICATOR RIGHT OU LEFT OEM PIAGGIO GILERA 125-250-300-500 NEXUS/MOTO-GUZZI V7, V9, V11, BREVA/APRILIA 50-125 RS-639338 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/2/7/img/65727.jpg)
14 |
AMPOULE/LAMPE 12V 21/5W BAY15D/P21/5 OEM PIAGGIO COMMON A LA RANGE-129953 More informationQuantity required : 1 |
||||||
|
15 |
|
||||||
|
16 |
AP8127123-SCREW More informationQuantity required : 2 |
