Vehicle Exploded View - APRILIA RS 50 1999-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

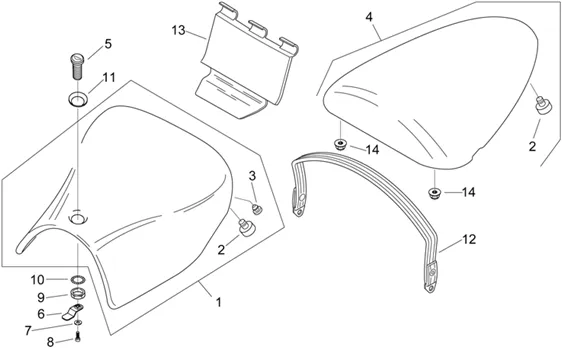

Chassis : 28.12 GROUPE SELLE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/267/RS_50_1999-2005_28.12.PNG)
1 |
AP8229252 - SELLE PILOTE ROUGE; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/7/8/6/0/img/57860.jpg)
1 |
SADDLE- FOR RIDER-BLACK "PIAGGIO GENUINE PART" APRILIA 50 RS 1999>2005 -AP8229308- More informationQuantity required : 1 |
||||||
|
1 |
AP8229346 - SELLE PILOTE NOIRE; More informationQuantity required : 1 |
||||||
|
1 |
AP8229408 - SELLA PILOTA NERA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/8/1/img/72281.jpg)
2 |
BUFFER RUBBER DU LOGEMENT DE SEAT OEM APRILIA-AP8220349 More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/3/img/71383.jpg)
3 |
CAP RUBBER OEM PIAGGIO COMMON A LA RANGE-AP8120001 More informationQuantity required : 2 |
||||||
|
4 |
AP8229296 - SELLE PASS.ROUGE; More informationQuantity required : 1 |
||||||
|
4 |
AP8229313 - SELLE PASSAGER JAUNE; More informationQuantity required : 1 |
||||||
|
4 |
AP8229347 - SELLE PASSAGER NOIRE; More informationQuantity required : 1 |
||||||
|
4 |
AP8229356 - SELLE PASSAGER BLEUE More informationQuantity required : 1 |
||||||
|
4 |
AP8229254 - SELLE PASSAGER NOIRE; More informationQuantity required : 1 |
||||||
|
5 |
KIT LOCK HATCH FUEL OEM PIAGGIO APRILIA 125 ATLANTIC, CLASSIC, EUROPA, LEONARDO, 50 RS-AP8104609 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/9/1/2/0/img/49120.jpg)
6 |
PLATINE LATCH DE SEAT OEM PIAGGIO APRILIA 50 RS 1993 > 2005-AP8135260 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/8/img/71808.jpg)
7 |
WASHER PLATE (6. 6X18X1. 6) OEM PIAGGIO COMMON A LA RANGE-AP8150015 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/0/9/0/img/97090.jpg)
8 |
SCREW BTR (6X8) OEM PIAGGIO COMMON A LA RANGE-AP8152123 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/6/8/img/50968.jpg)
9 |
NUT BAS (M19X1) OEM PIAGGIO COMMON A LA RANGE-AP8152194 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/7/0/5/4/img/57054.jpg)
10 |
WASHER EVENTAIL (D 19) DE LOCK OEM PIAGGIO COMMON A LA RANGE-AP8221312 More informationQuantity required : 1 |
||||||
|
11 |
AP8229207 - CUVETTE SERR.SELLE; More informationQuantity required : 1 |
||||||
|
12 |
AP8129222 - COURROIE PASSAGER, NOIR; More informationQuantity required : 1 |
||||||
|
12 |
Courroie pass.roug.; |
||||||
|
12 |
AP8229314 - COURROIE PASSAGER, JAUNE; More informationQuantity required : 1 |
||||||
|
12 |
Courroie passager, noir; |
||||||
|
12 |
AP8229357-BELT PASSENGER More informationQuantity required : 1 |
||||||
|
12 |
Courroie passager, noir |
||||||
|
13 |
AP8239869 - ABATT. P-OBJET GRIS S. More informationQuantity required : 1 |
||||||
|
13 |
AP8248798 - ABATT. P-OBJET.GRIS G.; More informationQuantity required : 1 |
||||||
|
13 |
Abatt.porte-obj., gris; |
||||||
|
13 |
AP8249597 - ABATT.PORTE-OBJ., GRIS; More informationQuantity required : 1 |
||||||
|
13 |
AP8249891 - ABATT. PORTE-OBJETS NOIR; More informationQuantity required : 1 |
||||||
|
13 |
AP8258197 - ABATTANT PORTE-OBJETS GRIS D.; More informationQuantity required : 1 |
||||||
|
13 |
AP8258429 - ABATTANT PORTE-OBJETS NOIR; More informationQuantity required : 1 |
||||||
|
13 |
AP8258574 - ABATTANT PORTE-OBJETS GRIS; More informationQuantity required : 1 |
||||||
|
13 |
AP8258799 - ABATTANT PORTE-OBJETS BLEU More informationQuantity required : 1 |
||||||
|
13 |
AP8258966-ABATT. DOOR-OBJETS BLACK More informationQuantity required : 1 |
||||||
|
13 |
AP8258969 - ABATTANT PORTE-OBJETS GRIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/3/img/71963.jpg)
14 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M5) OEM PIAGGIO COMMON A LA RANGE-AP81523066 More informationQuantity required : 2 |
