Vehicle Exploded View - APRILIA RS 50 1999-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

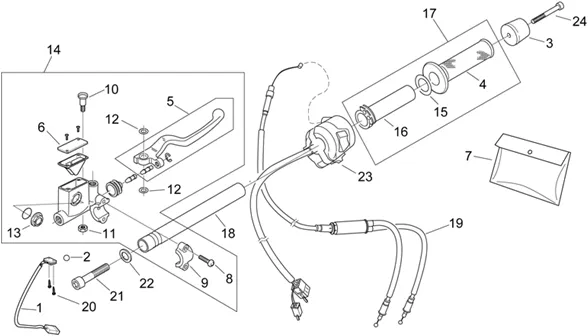

Chassis : 28.16 COMMANDES DTE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/267/RS_50_1999-2005_28.16.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/2/4/4/img/56244.jpg)
1 |
STOP SWITCH+WIRING "PIAGGIO GENUINE PART" APRILIA 50 RS, SX, RX, MX, CLASSIC, TUONO, 125 PEGASO, TUONO, 600-650 PEGASO -AP8212196 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/3/5/2/img/55352.jpg)
2 |
BILLE (D7. 1) OEM PIAGGIO 50 RS/RX/RS TUONO/MX APRILIA-AP8201326 More informationQuantity required : 1 |
||||||
3 |
AP8202330 - MASSE ANTI VIBRATOIRE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/2/9/7/img/46297.jpg)
4 |
POIGNEES RUBBER (PAIRE) OEM APRILIA 50-125 RS 2010 <-AP8118287 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/4/5/7/img/56457.jpg)
5 |
AP8213422 - LEVIER FREIN AVANT More informationQuantity required : 1 |
||||||
|
6 |
AP8213477-COVER TANK More informationQuantity required : 1 |
||||||
|
7 |
AP8213420 - KIT REVISION POMPE More informationQuantity required : 1 |
||||||
|
8 |
AP8213421 - VIS More informationQuantity required : 2 |
||||||
|
9 |
AP8213078-CAVALIER More informationQuantity required : 1 |
||||||
|
10 |
AP8113413-PIVOT LEVER BRAKE More informationQuantity required : 1 |
||||||
|
11 |
Ecrou; |
||||||
|
12 |
Rondelle |
||||||
|
13 |
AP8213277 - HUBLOT POMPE FREIN More informationQuantity required : 1 |
||||||
|
14 |
AP8213436 - MA?T. CYL. FREIN AV More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/2/2/img/67022.jpg)
15 |
BUSH GRIP THROTTLE 38, 3X27X1, 2 COMMON A LA RANGE PIAGGIO-6562923 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/5/4/img/71354.jpg)
16 |
TRANSMISSION THROTTLE CABLE WITHOUT HAND GRIP "PIAGGIO GENUINE PART" MOTO-GUZZI 1100 SPORT, 1100 CALIFORNIA, 750 NEVADA, 1000 DAYTONA/APRILIA 650 PEGASO, 50 RS 1999>2005 -AP8118316- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/2/9/9/img/46299.jpg)
17 |
THROTTLE GRIP OEM PIAGGIO APRILIA 50 RS 1999 > 2005, 125 RS 1995 > 2010, AF1-AP8118307 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/6/6/1/img/56661.jpg)
18 |
RIGHT HALF HANDLEBAR "PIAGGIO GENUINE PART" APRILIA 50 RS 1999>2005 -AP8218340- More informationQuantity required : 1 |
||||||
|
19 |
AP8214180 - CABLE GAZ; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/5/8/5/img/56585.jpg)
19 |
TRANSMISSION THROTTLE CABLE "PIAGGIO GENUINE PART" APRILIA 50 RS 1999>2005 -AP8214218- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/5/9/9/img/56599.jpg)
19 |
THROTTLE TRANSMISSION CABLE "PIAGGIO GENUINE PART" APRILIA 50 RS 1999>2005 -AP8214236- More informationQuantity required : 1 |
||||||
|
20 |
AP8150238-SCREW More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/8/9/4/img/50894.jpg)
21 |
AP8150481 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/2/9/img/71929.jpg)
22 |
WASHER GEAR OIL PUMP (10, 5X16X1) OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-AP8152220 More informationQuantity required : 1 |
||||||
|
23 |
AP8224160 - DEVIATEUR FEUX DTE; More informationQuantity required : 1 |
||||||
|
23 |
AP8224185-DEVIATEUR FEUX DTE More informationQuantity required : 1 |
||||||
|
23 |
AP8224117-COMODO FEUX RIGHT APRILIA 50 RS 1999 > 2005 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/7/3/4/8/img/57348.jpg)
23 |
COMMODO/SWITCH RIGHT OEM PIAGGIO APRILIA 50 RS 1999 > 2005, RS4 2011 >-AP8224303 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/5/2/img/71852.jpg)
24 |
SCREW BTR (6X35) OEM PIAGGIO COMMON A LA RANGE-AP8150285 More informationQuantity required : 1 |
