Vehicle Exploded View - APRILIA RS 50 1999-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

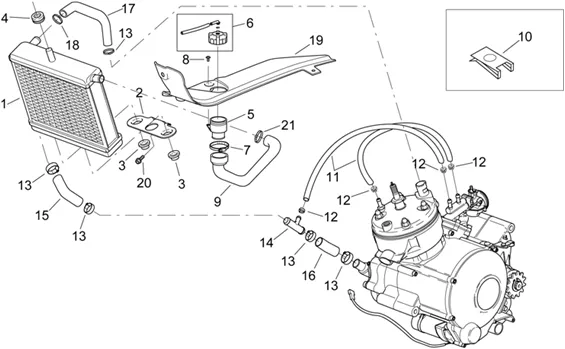

Chassis : 28.18 RADIATEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/267/RS_50_1999-2005_28.18.PNG)
1 |
AP8201476 - RADIATEUR; More informationQuantity required : 1 |
||||||
|
2 |
AP8234158-BRACKET RADIATOR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/5/1/img/71151.jpg)
3 |
RUBBER MOUNT/RUBBER EN T OEM PIAGGIO COMMON A LA RANGE-AP8101372 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/4/img/71384.jpg)
4 |
RUBBER/SPACER OEM PIAGGIO COMMON A LA RANGE-AP8120030 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/3/5/1/img/55351.jpg)
5 |
AP8201312 - TUBULURE REMPLISSAGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/3/5/7/img/55357.jpg)
6 |
COOLANT RADIATOR CAP "PIAGGIO GENUINE PART" APRILIA 50 RS, SX, RX, 125-250 SCARABEO, LEONARDO, 400-500 SCARABEO, ATLANTIC -AP8201463 More informationQuantity required : 1 |
||||||
|
7 |
AP8220104-CLAMP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/1/img/71941.jpg)
8 |
SCREW FLANGE TH (6X12) OEM PIAGGIO COMUUN A LA RANGE-AP8152277 More informationQuantity required : 1 |
||||||
|
9 |
AP8220235 - TUBE REMPL. RADIAT. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
10 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 1 |
||||||
|
11 |
AP8206977 - TUYAU More informationQuantity required : 1 |
||||||
|
11 |
AP8220450-HOSE A TEXTURE EN RUBBER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/1/img/71171.jpg)
12 |
AP8102239-CLAMP CLIC More informationQuantity required : 4 |
||||||
|
12 |
AP8206884 - COLLIER CLIC More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/1/2/3/img/45123.jpg)
13 |
CLAMP CLIC HOSE (23, 5X8) OEM PIAGGIO COMMON A LA RANGE-AP8101927 More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/8/8/1/img/56881.jpg)
14 |
"TEE" UNION "PIAGGIO GENUINE PART" APRILIA 50 CLASSIC, RS, SX, RX -AP8220415- More informationQuantity required : 1 |
||||||
|
15 |
AP8220496 - TUBE POMPE RADIATEUR; More informationQuantity required : 1 |
||||||
|
15 |
AP8220613 - TUBE POMPE RADIATEUR More informationQuantity required : 1 |
||||||
|
16 |
AP8220512 - TUYAU POMPE RACCORD More informationQuantity required : 1 |
||||||
|
17 |
AP8220511-TUBE DE CYLINDER HEAD RADIATOR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/5/8/img/71158.jpg)
18 |
CLAMP CLIC HOSE (25X8, 6) OEM PIAGGIO COMMON A LA RANGE-AP8101722 More informationQuantity required : 1 |
||||||
|
19 |
AP8239450 - FERM.T-D-B NOIRE; More informationQuantity required : 1 |
||||||
|
20 |
SCREW FLANGE TH (6X12) OEM PIAGGIO COMUUN A LA RANGE-AP8152277 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/2/8/img/72128.jpg)
21 |
AP8201169-CLAMP CLIC More informationQuantity required : 1 |
