Vehicle Exploded View - APRILIA RS 50 1999-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

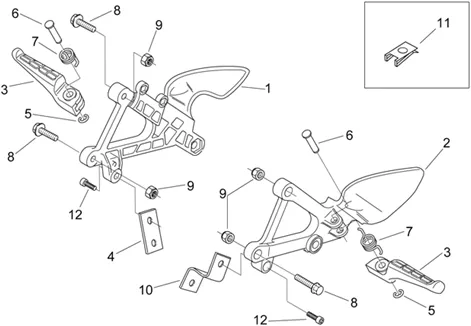

Chassis : 28.03 R-PIED PILOTE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/267/RS_50_1999-2005_28.03.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/8/0/7/7/img/58077.jpg)
1 |
PLATINE FOOTREST PILOTE RIGHT OEM PIAGGIO APRILIA 50 RS 1999 > 2005, TUONO 2003 > 2004-AP8234182 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/8/0/7/8/img/58078.jpg)
2 |
PLATINE FOOTREST PILOTE LEFT OEM PIAGGIO APRILIA 50 RS 1999 > 2005, TUONO 2003 > 2004-AP8234183 More informationQuantity required : 1 |
||||||
3 |
R-pied pilote-paire; |
||||||
|
4 |
AP8234146-PLAQ. FIX. FAIRING DTE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/0/4/img/71404.jpg)
5 |
CIRCLIPS OF REST FOOT OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA ET MOTO-GUZZI-AP8120573 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/8/1/img/71981.jpg)
5 |
CLIPS/CIRCLIPS (D-8) OEM PIAGGIO COMMON A LA RANGE-AP8152409 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/7/2/img/71472.jpg)
6 |
PIVOT REST-FOOT (8X36) OEM PIAGGIO COMMON A LA RANGE APRILIA/MOTO GUZZI-AP8121566 More informationQuantity required : 2 |
||||||
|
6 |
Pivot repose-pieds |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/1/0/img/72310.jpg)
7 |
SPRING FOOTREST PILOTE OEM PIAGGIO MOTO-GUZZI BREVA, NORGE, STELVIO, V7, V9, V85/APRILIA 750-900 SHIVER-AP8221277 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/0/img/71950.jpg)
8 |
SCREW FLANGE TH (8X30) OEM PIAGGIO COMMON A LA RANGE-AP8152288 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/3/img/71883.jpg)
9 |
NUT AUTOBLOQUANT/NYLSTOP (M8) OEM PIAGGIO COMMON A LA RANGE-AP8150431 More informationQuantity required : 2 |
||||||
|
10 |
AP8234147 - PLAQ. FIX.CARENE GCHE; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
11 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/4/img/71824.jpg)
12 |
SCREW BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8150137 More informationQuantity required : 2 |
