Vehicle Exploded View - APRILIA RS 50 1999-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

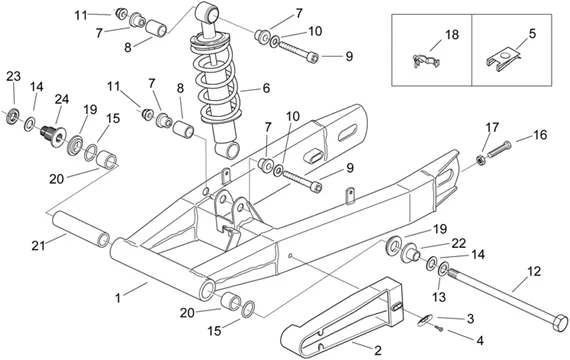

Chassis : 28.07 FOURCHE ARRIERE - AMORTISSEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/267/RS_50_1999-2005_28.07.PNG)
1 |
Fourche ar., gris; |
||||||
|
1 |
AP8235146 - FOURCHE AR., NOIR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/9/0/5/img/56905.jpg)
2 |
GALET GUIDE-CHAIN OEM PIAGGIO APRILIA 50 RS 1999 > 2005, TUONO 2003 > 2004-AP8220499 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/1/6/8/img/97168.jpg)
3 |
WASHER FOR PATIN GUIDE CHAIN OEM PIAGGIO COMMON A LA RANGE APRILIA-AP8234020 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/4/3/img/71843.jpg)
4 |
SCREW PARKER (4. 8X13) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-AP8150246 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
5 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375 More informationQuantity required : 3 |
||||||
|
6 |
AP8203363 - AMMORTIZZATORE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/6/3/6/img/55636.jpg)
7 |
BUSH EN T OEM PIAGGIO COMMON A LA RANGE-AP8203948 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/5/9/9/img/55599.jpg)
8 |
AP8203826 - SILENTBLOC More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/8/img/71818.jpg)
9 |
SCREW BTR (10X60) OEM PIAGGIO COMMON ALA RANGE-AP8150049 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/0/9/2/img/97092.jpg)
10 |
WASHER PLATE (10. 5X18X2) OEM PIAGGIO COMMON A LA RANGE-AP8152176 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/0/img/71960.jpg)
11 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-AP8152301 More informationQuantity required : 1 |
||||||
|
12 |
AP8225332 - PIVOT FOURCHE AR More informationQuantity required : 1 |
||||||
|
13 |
AP8150297 - RONDELLE ELASTIQUE COURBE More informationQuantity required : 1 |
||||||
|
14 |
AP8152063 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/8/4/3/img/56843.jpg)
15 |
O-RING OEM PIAGGIO COMMON A LA RANGE-AP8220198 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/2/img/71962.jpg)
16 |
SCREW REGLAGE TENSION CHAIN OEM APRILIA COMMON A LA RANGE-AP8152305 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/0/9/5/img/97095.jpg)
17 |
AP8152262 - ECROU BAS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/8/9/0/0/img/48900.jpg)
18 |
GUIDE CABLE OEM PIAGGIO/APRILIA COMMON A LA RANGE-AP8134186 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/8/4/1/img/56841.jpg)
19 |
AP8220196 - DOUILLE More informationQuantity required : 2 |
||||||
|
20 |
AP8220197 - DOUILLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/9/9/1/img/56991.jpg)
21 |
AP8221024 - ENTRETOISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/7/3/0/img/46730.jpg)
22 |
AP8121150 - DOUILLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/8/5/4/img/50854.jpg)
23 |
AP8150299 - BAGUE More informationQuantity required : 1 |
||||||
|
24 |
AP8221278 - DOUILLE DE REGLAGE; More informationQuantity required : 1 |
