Vehicle Exploded View - APRILIA RS 50 1999-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

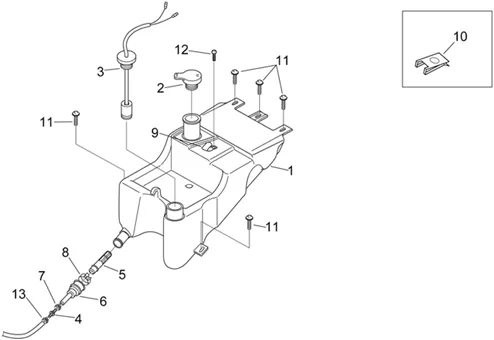

Chassis : 28.21 RÉSERVOIR HUILE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/267/RS_50_1999-2005_28.21.PNG)
1 |
AP8239468-TANK OIL * More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/8/8/2/img/56882.jpg)
2 |
CAP TANK OIL OEM PIAGGIO APRILIA COMMON A LA RANGE SCOOTER 50 CC-AP8220421 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/3/5/9/img/56359.jpg)
3 |
OIL RESERVE INDICATOR "PIAGGIO GENUINE PART" APRILIA 50 RS, TUONO 1999>2005 -AP8212976- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/6/6/img/71166.jpg)
4 |
FITTING FUEL A DEUX VOIES OEM PIAGGIO COMMON A LA RANGE-AP8101944 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/0/img/71170.jpg)
5 |
OIL TANK FILTER "PIAGGIO GENUINE PART" COMMON TO THE RANGE APRILIA 50-125 CC -AP8102224 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/1/4/2/img/45142.jpg)
6 |
RUBBER/FITTING CANALISATION OIL OEM PIAGGIO COMMON A LA RANGE APRILIA 50-125-AP8102223 More informationQuantity required : 1 |
||||||
|
7 |
AP8101770-CLAMP CLIC More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/1/0/7/img/45107.jpg)
8 |
CLAMP CLIC (23, 5X8) OEM PIAGGIO COMMON A LA RANGE-AP8101743 More informationQuantity required : 1 |
||||||
|
9 |
Crochet batterie |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
10 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/3/img/71933.jpg)
11 |
SCREW FLANGE BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152246 More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/4/img/71934.jpg)
12 |
SCREW BTR HEAD BOMBEE (5X12) OEM PIAGGIO COMMON A LA RANGE-AP8152267 More informationQuantity required : 1 |
||||||
|
13 |
AP8102926-CLAMP CLIC More informationQuantity required : 1 |
