Vehicle Exploded View - APRILIA RS 50 1996-1998
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

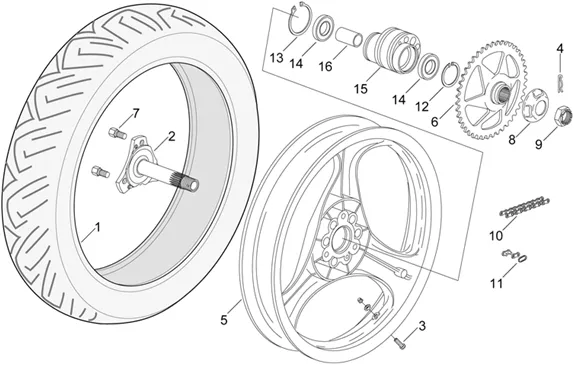

Chassis : 28.27 ROUE ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/266/RS_50_1996-1998_28.27.PNG)
2 |
Axe de roue |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/5/9/img/71159.jpg)
3 |
VALVE TUBELESS OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA ET MOTO-GUZZI-AP8101744 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/3/4/8/img/55348.jpg)
4 |
GOUPILLE DE REAR WHEEL OEM APRILIA 50-125 RS 2005 <-AP8201287 More informationQuantity required : 1 |
||||||
|
5 |
Roue AR nue noire |
||||||
|
6 |
AP8207046 - COURONNE More informationQuantity required : 1 |
||||||
|
6 |
AP8207058-COURONNE More informationQuantity required : 1 |
||||||
|
7 |
Vis roue |
||||||
|
8 |
Couvre-couronne |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/6/0/img/50960.jpg)
9 |
NUT DE WHEEL OEM PIAGGIO APRILIA 50 EUROPA, AF1, RS-AP8152157 More informationQuantity required : 1 |
||||||
|
10 |
AP8207017 - CHA?NE+MAIL.JONCTION More informationQuantity required : 1 |
||||||
|
11 |
AP8207019 - MAILLON DE JONCTION More informationQuantity required : 1 |
||||||
|
12 |
Anneau élastique |
||||||
|
13 |
Anneau élastique; |
||||||
|
14 |
AP8110046 - ROULEMENT More informationQuantity required : 2 |
||||||
|
15 |
Excentrique |
||||||
|
16 |
Entretoise |
