Vehicle Exploded View - APRILIA RS 50 1996-1998
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

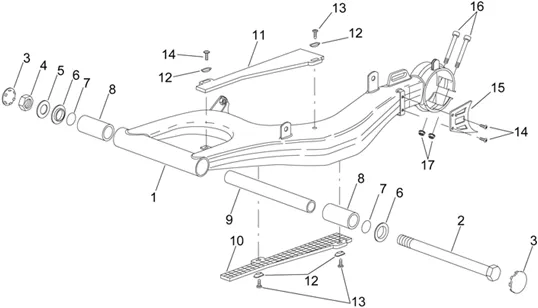

Chassis : 28.07 FOURCHE ARRIERE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/266/RS_50_1996-1998_28.07.PNG)
1 |
Bras oscillant sab.cat, gris; |
||||||
|
2 |
Pivot fourche AR; |
||||||
|
3 |
Bouchon axe fourche AR |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/3/9/img/50939.jpg)
4 |
NUT (M14X1, 5) SPINDLE OEM MOPED SWINGARM OEM COMMON A LA RANGE APRILIA-AP8152007 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/8/4/6/img/50846.jpg)
5 |
WASHER PLATE (15X28X2, 5) OEM PIAGGIO COMMON A LA RANGE-AP8150208 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/8/4/1/img/56841.jpg)
6 |
AP8220196 - DOUILLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/8/4/3/img/56843.jpg)
7 |
O-RING OEM PIAGGIO COMMON A LA RANGE-AP8220198 More informationQuantity required : 2 |
||||||
|
8 |
AP8220197 - DOUILLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/9/9/1/img/56991.jpg)
9 |
AP8221024 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
10 |
Patin g-chaîne inf. |
||||||
|
11 |
Patin g-chaîne sup. |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/1/6/8/img/97168.jpg)
12 |
WASHER FOR PATIN GUIDE CHAIN OEM PIAGGIO COMMON A LA RANGE APRILIA-AP8234020 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/4/3/img/71843.jpg)
13 |
SCREW PARKER (4. 8X13) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-AP8150246 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/4/img/71934.jpg)
14 |
SCREW BTR HEAD BOMBEE (5X12) OEM PIAGGIO COMMON A LA RANGE-AP8152267 More informationQuantity required : 3 |
||||||
|
15 |
Plaque prot.couron.; |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/6/8/img/71868.jpg)
16 |
SCREW BTR (8X85) OEM PIAGGIO COMMON A LA RANGE-AP8150354 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/9/img/71959.jpg)
17 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M8) OEM PIAGGIO COMMON A LA RANGE-AP8152300 More informationQuantity required : 2 |
