Vehicle Exploded View - APRILIA RS 50 1996-1998
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

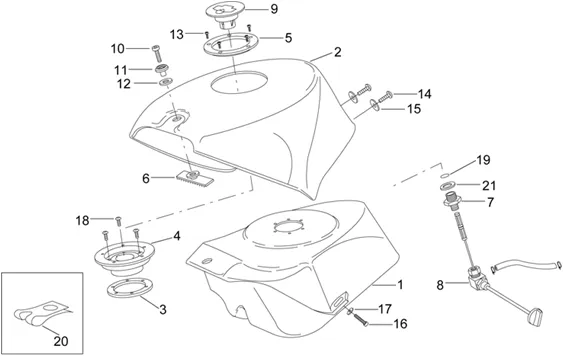

Chassis : 28.10 RESERVOIR CARBURANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/266/RS_50_1996-1998_28.10.PNG)
1 |
Réservoir essence; |
||||||
|
2 |
Cache-réservoir, gris; |
||||||
|
2 |
Cache-réservoir, noir/gris; |
||||||
|
2 |
Cache-réservoir, gris; |
||||||
|
2 |
Cache-réservoir, noir; |
||||||
|
2 |
Cache-réservoir, bleu; |
||||||
|
2 |
Cache-réservoir, noir; |
||||||
|
2 |
Cache-réservoir, noir trans.; |
||||||
|
3 |
AP8120702-GASKET ORIFICE REMPL * More informationQuantity required : 1 |
||||||
|
4 |
AP8121784-TUBULURE REMPLISSAGE More informationQuantity required : 1 |
||||||
|
5 |
AP8102361 - BAGUE BOUCHON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/0/3/img/71403.jpg)
6 |
RUBBER TANK OEM PIAGGIO COMMON A LA RANGE APRILIA/MOTO GUZZI-AP8120557 More informationQuantity required : 2 |
||||||
|
7 |
Raccord rob. ess. |
||||||
|
8 |
AP8201676 - ROBINET RS 50 More informationQuantity required : 1 |
||||||
|
9 |
AP8202380 - TAPPO BENZINA More informationQuantity required : 1 |
||||||
|
10 |
Vis |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/8/0/img/71480.jpg)
11 |
AP8121673 - "DOUILLE EN ""T""" More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/7/6/img/72276.jpg)
12 |
RUBBER EXHAUST OEM DERBI 50 SENDA 2010 >/GILERA 50 SMT, RCR/APRILIA 50 RS, FUTURA, RX, SX-AP8220241 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/0/img/71910.jpg)
13 |
SCREW BTR (4X10) OEM PIAGGIO COMMON A LA RANGE-AP8152043 More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/3/img/71913.jpg)
14 |
SCREW BTR HEAD BOMBEE (6X15) OEM PIAGGIO COMMON A LA RANGE-AP8152108 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/4/img/71834.jpg)
15 |
WASHER PLATE (6, 6X18X1, 6) OEM PIAGGIO COMMON A LA RANGE-AP8150179 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/4/6/img/71846.jpg)
16 |
SCREW BTR (5X20) OEM PIAGGIO COMMON A LA RANGE-AP8150252 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/6/img/71806.jpg)
17 |
WASHER PLATE (5. 5X15X1. 6) OEM PIAGGIO COMMU A LA RANGE-AP8150013 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/6/3/img/50963.JPG)
18 |
SCREW M6X12 OEM APRILIA COMMON A LA RANGE-AP8152186 More informationQuantity required : 6 |
||||||
|
19 |
Joint torique |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
20 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375 More informationQuantity required : 2 |
||||||
|
21 |
Rondelle |
