Vehicle Exploded View - APRILIA RS 50 1996-1998
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

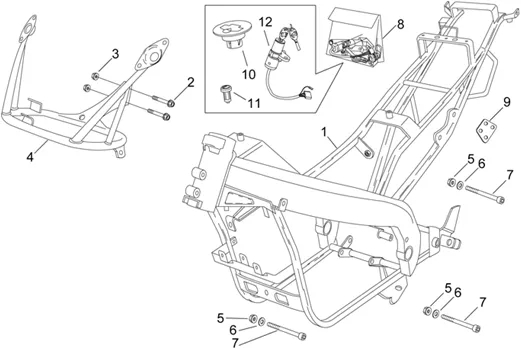

Chassis : 28.01 CHASSIS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/266/RS_50_1996-1998_28.01.PNG)
1 |
Châssis, gris; |
||||||
|
1 |
Châssis, gris; |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/5/img/71945.jpg)
2 |
SCREW FLANGE TH (6X35) OEM PIAGGIO COMMON A LA RANGE-AP8152282 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
3 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8152299 More informationQuantity required : 2 |
||||||
|
4 |
AP8232931 - CADRE P-INSTRUM. SAB.CAT.; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/9/img/71959.jpg)
5 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M8) OEM PIAGGIO COMMON A LA RANGE-AP8152300 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/9/img/71809.jpg)
6 |
WASHER PLATE (8. 4X16X1. 6) OEM PIAGGIO COMMON A LA RANGE-AP8150017 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/8/6/9/img/50869.jpg)
7 |
SCREW BTR (8X100) OEM PIAGGIO COMMON A LA RANGE-AP8150388 More informationQuantity required : 3 |
||||||
|
8 |
Kit serrure |
||||||
|
8 |
AP8201872 - KIT SERRURE; More informationQuantity required : 1 |
||||||
|
9 |
Plaquette transducteur; |
||||||
|
10 |
AP8202380 - TAPPO BENZINA More informationQuantity required : 1 |
||||||
|
11 |
KIT LOCK HATCH FUEL OEM PIAGGIO APRILIA 125 ATLANTIC, CLASSIC, EUROPA, LEONARDO, 50 RS-AP8104609 More informationQuantity required : 1 |
||||||
|
12 |
AP8212342-BLOC STARTER MOTOR-BLOC More informationQuantity required : 1 |
