Vehicle Exploded View - APRILIA RS 50 1996-1998 APRILIA

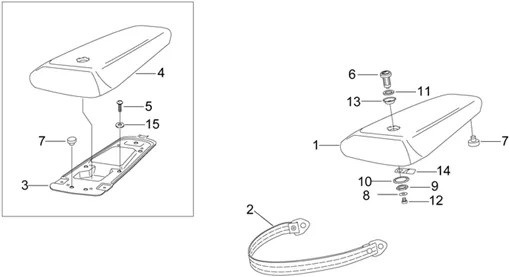

Chassis : 28.13 CARROSSERIE POSTERIEURE I
Carrosserie posterieure I
Search
Selle passager noire;

1
P2R reference P2R reference
Maker reference Maker reference AP8229162

Selle passager noire;

Selle passager grise;

1
P2R reference P2R reference
Maker reference Maker reference AP8229178

Selle passager grise;

Selle passager grise;

1
P2R reference P2R reference
Maker reference Maker reference AP8229272

Selle passager grise;

Courroie passager, noir;

2
P2R reference P2R reference
Maker reference Maker reference AP8229163

Courroie passager, noir;

Courroie passager, gris;

2
P2R reference P2R reference
Maker reference Maker reference AP8229177

Courroie passager, gris;

Courroie passager, gris;

2
P2R reference P2R reference
Maker reference Maker reference AP8229273

Courroie passager, gris;

Fond selle;

3
P2R reference P2R reference
Maker reference Maker reference AP8231228

Fond selle;

Couv. selle passager, gris

4
P2R reference P2R reference
Maker reference Maker reference AP8239352

Couv. selle passager, gris

Couvercle selle

4
P2R reference P2R reference
Maker reference Maker reference AP8231278

Couvercle selle

Couv. selle passager, gris;

4
P2R reference P2R reference
Maker reference Maker reference AP8238680

Couv. selle passager, gris;

Couv. selle passager, gris

4
P2R reference P2R reference
Maker reference Maker reference AP8239351

Couv. selle passager, gris

Couv. selle pass., noir trans.;

4
P2R reference P2R reference
Maker reference Maker reference AP8248145

Couv. selle pass., noir trans.;

AP8150146 - VIS

5
P2R reference P2R reference 50840
Maker reference Maker reference AP8150146

AP8150146 - VIS

More information

Quantity required : 5

LOCK KIT- FOR FUEL TRAPDOOR "PIAGGIO GENUINE PART" APRILIA 125 ATLANTIC, CLASSIC, EUROPA, LEONARDO, 50 RS -AP8104609-

6
P2R reference P2R reference 45421
Maker reference Maker reference AP8104609

KIT LOCK HATCH FUEL OEM PIAGGIO APRILIA 125 ATLANTIC, CLASSIC, EUROPA, LEONARDO, 50 RS-AP8104609

More information

Quantity required : 1

BUFFER RUBBER DU LOGEMENT DE SEAT OEM APRILIA-AP8220349

7
P2R reference P2R reference 72281
Maker reference Maker reference AP8220349

BUFFER RUBBER DU LOGEMENT DE SEAT OEM APRILIA-AP8220349

More information

Quantity required : 4

WASHER PLATE (6. 6X18X1. 6) OEM PIAGGIO COMMON A LA RANGE-AP8150015

8
P2R reference P2R reference 71808
Maker reference Maker reference AP8150015

WASHER PLATE (6. 6X18X1. 6) OEM PIAGGIO COMMON A LA RANGE-AP8150015

More information

Quantity required : 1

NUT BAS (M19X1) OEM PIAGGIO COMMON A LA RANGE-AP8152194

9
P2R reference P2R reference 50968
Maker reference Maker reference AP8152194

NUT BAS (M19X1) OEM PIAGGIO COMMON A LA RANGE-AP8152194

More information

Quantity required : 1

WASHER EVENTAIL (D 19) DE LOCK OEM PIAGGIO COMMON A LA RANGE-AP8221312

10
P2R reference P2R reference 57054
Maker reference Maker reference AP8221312

WASHER EVENTAIL (D 19) DE LOCK OEM PIAGGIO COMMON A LA RANGE-AP8221312

More information

Quantity required : 1

AP8120703 - RONDELLE NYLON

11
P2R reference P2R reference 46630
Maker reference Maker reference AP8120703

AP8120703 - RONDELLE NYLON

More information

Quantity required : 1

SCREW BTR (6X8) OEM PIAGGIO COMMON A LA RANGE-AP8152123

12
P2R reference P2R reference 97090
Maker reference Maker reference AP8152123

SCREW BTR (6X8) OEM PIAGGIO COMMON A LA RANGE-AP8152123

More information

Quantity required : 1

AP8229207 - CUVETTE SERR.SELLE;

13
P2R reference P2R reference 57846
Maker reference Maker reference AP8229207

AP8229207 - CUVETTE SERR.SELLE;

More information

Quantity required : 1

PLATINE LATCH DE SEAT OEM PIAGGIO APRILIA 50 RS 1993 > 2005-AP8135260

14
P2R reference P2R reference 49120
Maker reference Maker reference AP8135260

PLATINE LATCH DE SEAT OEM PIAGGIO APRILIA 50 RS 1993 > 2005-AP8135260

More information

Quantity required : 1

WASHER PLATE NYLON (10X5. 3X1) OEM PIAGGIO COMMON A LA RANGE-AP8120591

15
P2R reference P2R reference 164486
Maker reference Maker reference AP8120591

WASHER PLATE NYLON (10X5. 3X1) OEM PIAGGIO COMMON A LA RANGE-AP8120591

More information

Quantity required : 4
