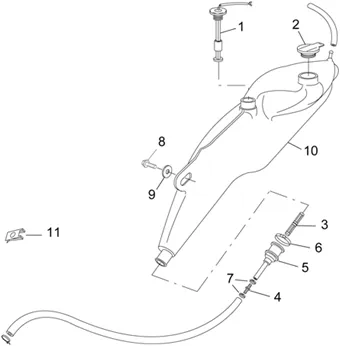

Chassis : 28.20 RÉSERVOIR HUILE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/266/RS_50_1996-1998_28.20.PNG)
1 |
AP8201192 - INDICATEUR RESERVE HUILE More informationQuantity required : 1 |
||||||
|
2 |
AP8220154-CAP TANK OIL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/0/img/71170.jpg)
3 |
OIL TANK FILTER "PIAGGIO GENUINE PART" COMMON TO THE RANGE APRILIA 50-125 CC -AP8102224 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/6/6/img/71166.jpg)
4 |
FITTING FUEL A DEUX VOIES OEM PIAGGIO COMMON A LA RANGE-AP8101944 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/1/4/2/img/45142.jpg)
5 |
RUBBER/FITTING CANALISATION OIL OEM PIAGGIO COMMON A LA RANGE APRILIA 50-125-AP8102223 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/1/2/3/img/45123.jpg)
6 |
CLAMP CLIC HOSE (23, 5X8) OEM PIAGGIO COMMON A LA RANGE-AP8101927 More informationQuantity required : 1 |
||||||
|
7 |
AP8101770-CLAMP CLIC More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/2/img/71942.jpg)
8 |
SCREW FLANGE TH (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8152279 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/8/img/71808.jpg)
9 |
WASHER PLATE (6. 6X18X1. 6) OEM PIAGGIO COMMON A LA RANGE-AP8150015 More informationQuantity required : 2 |
||||||
|
10 |
Réservoir huile; |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
11 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 2 |
