Vehicle Exploded View - APRILIA RS 50 1996-1998 APRILIA

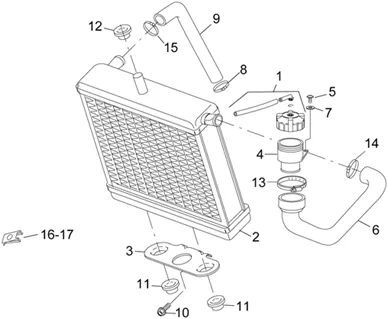

Chassis : 28.19 INSTALLATION REFROIDISSEMENT
Installation refroidissement
Search
COOLANT RADIATOR CAP "PIAGGIO GENUINE PART" APRILIA 50 RS, SX, RX, 125-250 SCARABEO, LEONARDO, 400-500 SCARABEO, ATLANTIC -AP8201463

1
P2R reference P2R reference 55357
Maker reference Maker reference AP8201463

COOLANT RADIATOR CAP "PIAGGIO GENUINE PART" APRILIA 50 RS, SX, RX, 125-250 SCARABEO, LEONARDO, 400-500 SCARABEO, ATLANTIC -AP8201463

More information

Quantity required : 1

AP8201476 - RADIATEUR;

2
P2R reference P2R reference 55359
Maker reference Maker reference AP8201476

AP8201476 - RADIATEUR;

More information

Quantity required : 1

AP8234158 - SUPPORT RADIATEUR;

3
P2R reference P2R reference 58070
Maker reference Maker reference AP8234158

AP8234158-BRACKET RADIATOR

More information

Quantity required : 1

AP8201312 - TUBULURE REMPLISSAGE

4
P2R reference P2R reference 55351
Maker reference Maker reference AP8201312

AP8201312 - TUBULURE REMPLISSAGE

More information

Quantity required : 1

SCREW BTR HEAD BOMBEE (5X16) OEM PIAGGIO COMMON A LA RANGE-AP8152268

5
P2R reference P2R reference 71935
Maker reference Maker reference AP8152268

SCREW BTR HEAD BOMBEE (5X16) OEM PIAGGIO COMMON A LA RANGE-AP8152268

More information

Quantity required : 1

AP8220235 - TUBE REMPL. RADIAT.

6
P2R reference P2R reference 56848
Maker reference Maker reference AP8220235

AP8220235 - TUBE REMPL. RADIAT.

More information

Quantity required : 1

WASHER PLATE (6. 4X12. 5) OEM PIAGGIO COMMON A LA RANGE-AP8150178

7
P2R reference P2R reference 71833
Maker reference Maker reference AP8150178

WASHER PLATE (6. 4X12. 5) OEM PIAGGIO COMMON A LA RANGE-AP8150178

More information

Quantity required : 1

CLAMP CLIC HOSE (25X8, 6) OEM PIAGGIO COMMON A LA RANGE-AP8101722

8
P2R reference P2R reference 71158
Maker reference Maker reference AP8101722

CLAMP CLIC HOSE (25X8, 6) OEM PIAGGIO COMMON A LA RANGE-AP8101722

More information

Quantity required : 1

Tube de culasse radiateur

9
P2R reference P2R reference
Maker reference Maker reference AP8220265

Tube de culasse radiateur

SCREW FLANGE TH (6X12) OEM PIAGGIO COMUUN A LA RANGE-AP8152277

10
P2R reference P2R reference 71941
Maker reference Maker reference AP8152277

SCREW FLANGE TH (6X12) OEM PIAGGIO COMUUN A LA RANGE-AP8152277

More information

Quantity required : 1

RUBBER MOUNT OEM PIAGGIO COMMON A LA RANGE-AP8120275

11
P2R reference P2R reference 46595
Maker reference Maker reference AP8120275

RUBBER MOUNT OEM PIAGGIO COMMON A LA RANGE-AP8120275

More information

Quantity required : 2

RUBBER/SPACER OEM PIAGGIO COMMON A LA RANGE-AP8120030

12
P2R reference P2R reference 71384
Maker reference Maker reference AP8120030

RUBBER/SPACER OEM PIAGGIO COMMON A LA RANGE-AP8120030

More information

Quantity required : 1

AP8220104 - COLLIER

13
P2R reference P2R reference 56830
Maker reference Maker reference AP8220104

AP8220104-CLAMP

More information

Quantity required : 1

AP8201169-CLAMP CLIC

14
P2R reference P2R reference 72128
Maker reference Maker reference AP8201169

AP8201169-CLAMP CLIC

More information

Quantity required : 1

CLAMP CLIC HOSE (23, 5X8) OEM PIAGGIO COMMON A LA RANGE-AP8101927

15
P2R reference P2R reference 45123
Maker reference Maker reference AP8101927

CLAMP CLIC HOSE (23, 5X8) OEM PIAGGIO COMMON A LA RANGE-AP8101927

More information

Quantity required : 1

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375

16
P2R reference P2R reference 71174
Maker reference Maker reference AP8102375

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375

More information

Quantity required : 1

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

17
P2R reference P2R reference 66009
Maker reference Maker reference 254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

More information

Quantity required : 4
