Vehicle Exploded View - MOTO-GUZZI QUOTA 1100 Quota ES 1100 1998-2002
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

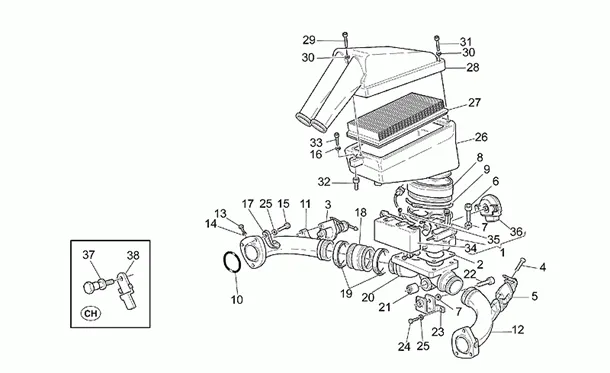

Moteur : 34.28 CORPS À PAPILLON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/921/Quota_ES_1100_1998-2002_34.28.png)
1 |
GU30112630 - CORPS A PAPILLON More informationQuantity required : 1 |
||||||
|
2 |
GU30113930 - JOINT More informationQuantity required : 1 |
||||||
|
3 |
GU30115725 - INJECTEUR CPL.D. More informationQuantity required : 1 |
||||||
|
4 |
GU98610245 - VIS More informationQuantity required : 4 |
||||||
|
5 |
GU30115726 - INJECTEUR CPL.G. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/1/4/1/img/133141.jpg)
6 |
SCREW BTR (8X30) OEM PIAGGIO COMMON A LA RANGE-GU98622430 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/4/8/img/73448.jpg)
7 |
WASHER (8, 4X13X0, 8) OEM PIAGGIO COMMON A LA RANGE-GU14615901 More informationQuantity required : 5 |
||||||
|
8 |
GU30114430-SLEEVE More informationQuantity required : 1 |
||||||
|
9 |
GU93305093 - COLLIER More informationQuantity required : 1 |
||||||
|
10 |
GU90706410-O-RING More informationQuantity required : 2 |
||||||
|
11 |
GU30115032 - COLLECTEUR ASPIRATION DTE More informationQuantity required : 1 |
||||||
|
12 |
GU30115033 - COLLECTEUR ASPIRATION GCHE More informationQuantity required : 1 |
||||||
|
13 |
GU98310610-SCREW More informationQuantity required : 2 |
||||||
|
14 |
GU95100116-WASHER More informationQuantity required : 2 |
||||||
|
15 |
GU98622325-SCREW M6X25 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/2/img/71912.jpg)
16 |
WASHER (6, 4X10X, 7) OEM PIAGGIO COMMON A LA RANGE-AP8152105 More informationQuantity required : 1 |
||||||
|
17 |
GU12006500 - COLLIER More informationQuantity required : 2 |
||||||
|
18 |
GU30114330 - MANCHON More informationQuantity required : 2 |
||||||
|
19 |
GU12548401-CLAMP More informationQuantity required : 4 |
||||||
|
20 |
GU30116931 - SUPPORT More informationQuantity required : 1 |
||||||
|
21 |
GU93202208 - SILENT BLOCK More informationQuantity required : 1 |
||||||
|
22 |
AP8203590-SCREW More informationQuantity required : 1 |
||||||
|
23 |
GU30425330 - SUPPORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/9/2/8/img/132928.jpg)
24 |
SCREW M6X16 OEM PIAGGIO COMMON A LA RANGE MOTO GUZZI-GU98084316 More informationQuantity required : 2 |
||||||
|
25 |
WASHER (6, 4X10X, 7) OEM PIAGGIO COMMON A LA RANGE-AP8152105 More informationQuantity required : 8 |
||||||
|
26 |
GU30113730 - BASE CORPS FILTRE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/5/8/1/img/130581_20260205002849.jpg)
27 |
AIR FILTER MOTO OEM PIAGGIO MOTO-GUZZI 940 BELLAGIO 2007 > 2013, 1000 DAYTONA 1992 > 1998, QUOTA 1992 > 2002, V10 1997 > 1999, 1100 CALIFORNIA 1994 > 2008, V11 1999 > 2005-GU30113600 More informationQuantity required : 1 |
||||||
|
28 |
GU30113430 - COUVERCLE CORPS FILTRE More informationQuantity required : 1 |
||||||
|
29 |
GU98620260 - VIS More informationQuantity required : 1 |
||||||
|
30 |
GU95004205-WASHER More informationQuantity required : 3 |
||||||
|
31 |
GU98620235-SCREW More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/5/1/img/73551.jpg)
32 |
RUBBER MOUNT OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-GU93222023 More informationQuantity required : 1 |
||||||
|
33 |
GU98622320-SCREW More informationQuantity required : 1 |
||||||
|
34 |
GU30112930 - COUVERCLE More informationQuantity required : 1 |
||||||
|
35 |
|
||||||
|
36 |
GU30530553 - DETEC.CORPS PAPILLON More informationQuantity required : 1 |
||||||
|
37 |
GU30468125 - VIS A ARRACHEMENT More informationQuantity required : 1 |
||||||
|
38 |
GU30113025 - PLAQUETTE More informationQuantity required : 1 |
