Vehicle Exploded View - MOTO-GUZZI QUOTA 1100 Quota ES 1100 1998-2002
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

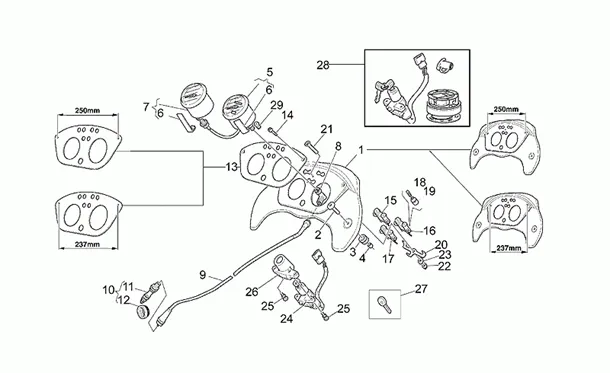

Chassis : 33.04 TABLEAU DE BORD
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/921/Quota_ES_1100_1998-2002_33.04.png)
1 |
GU30766226 - SUPPORT TABLEAU DE BORD More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/6/6/img/73566.jpg)
2 |
SCREW BTR SPECIALE HEAD BOMBEE (6X16) OEM MOTO GUZZI COMMON A LA RANGE-GU98370616 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/3/6/1/img/132361.jpg)
3 |
RUBBER GUIDE FIL (8X18) OEM PIAGGIO COMMON A LA RANGE-GU91551086 More informationQuantity required : 2 |
||||||
|
4 |
GU91180607 - ENTRETOISE More informationQuantity required : 2 |
||||||
|
5 |
GU30761525 - COMPTEUR KILOMETRIQUE More informationQuantity required : 1 |
||||||
|
5 |
GU30762425 - COMPTEUR KILOMETRIQUE More informationQuantity required : 1 |
||||||
|
6 |
GU29767860 - BRIDE More informationQuantity required : 2 |
||||||
|
7 |
GU02767200 - ELECTRONIC REVOLUTION COUNTER More informationQuantity required : 1 |
||||||
|
7 |
GU30767225 - COMPTE-TOURS ELECTRONIQUE NOIR More informationQuantity required : 1 |
||||||
|
8 |
GU17768360-RENVOI 90 More informationQuantity required : 1 |
||||||
|
9 |
GU28760410 - TRANSMISSION TACHYMETRE More informationQuantity required : 1 |
||||||
|
10 |
GU14762510 - RENVOI Z5/11 More informationQuantity required : 1 |
||||||
|
11 |
|
||||||
|
12 |
|
||||||
|
13 |
GU30764125 - PLAQUE More informationQuantity required : 1 |
||||||
|
13 |
GU30764126 - PLAQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/6/5/img/73565.jpg)
14 |
SCREW BTR (4. 80X14) OEM PIAGGIO COMMON A LA RANGE-GU98370515 More informationQuantity required : 2 |
||||||
|
15 |
GU30758325 - P.TE-TEMOINS RESERVE/POINT MOR More informationQuantity required : 1 |
||||||
|
16 |
GU30758125 - PORTE-TEMOINS HUILE/GENERATEUR More informationQuantity required : 1 |
||||||
|
17 |
GU30758025-DOOR-TEMOINS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/6/0/img/65760.jpg)
18 |
AMPOULE/LAMPE 12V 1, 2W CULOT W2X4. 6D BULB T5 TEMOIN WHITE OEM PIAGGIO COMMON A LA RANGE-164634 More informationQuantity required : 6 |
||||||
|
19 |
GU02768600-PORTALAMPADA More informationQuantity required : 6 |
||||||
|
20 |
GU30763825 - BRIDE More informationQuantity required : 1 |
||||||
|
21 |
GU98250535 - VIS More informationQuantity required : 1 |
||||||
|
22 |
GU92660005-NUT FLANGE More informationQuantity required : 1 |
||||||
|
23 |
GU92602205 - ECROU More informationQuantity required : 1 |
||||||
|
24 |
GU01782500 - BLOCCHETTO AVVIAMENTO-BLOCC. More informationQuantity required : 1 |
||||||
|
25 |
GU97260425-SCREW More informationQuantity required : 4 |
||||||
|
26 |
GU30783630 - PROTECTION More informationQuantity required : 1 |
||||||
|
27 |
GU30735500-CLE PAS CANTEE UNPAINTED More informationQuantity required : 1 |
||||||
|
28 |
GU30736825 - KIT SERRURE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/5/9/img/65759.jpg)
29 |
AMPOULE/LAMPE 12V 4W BA9S OEM PIAGGIO COMMON A LA RANGE-163015 More informationQuantity required : 2 |
