Vehicle Exploded View - MOTO-GUZZI QUOTA 1100 Quota ES 1100 1998-2002
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

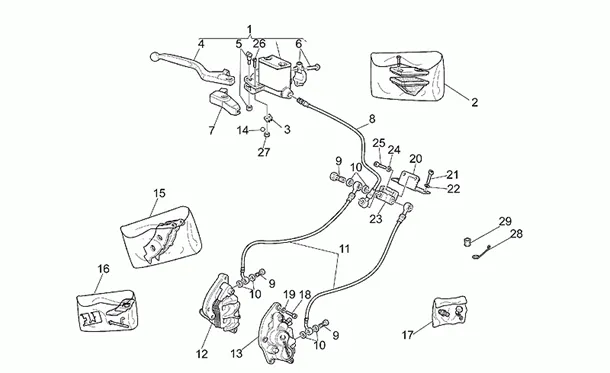

Chassis : 33.11 SYS.FREIN AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/921/Quota_ES_1100_1998-2002_33.11.png)
1 |
GU30660125 - MAIT.CYL.FREIN AV More informationQuantity required : 1 |
||||||
|
2 |
GU27661115 - COUVERCLE POMPE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/9/6/5/img/130965.jpg)
3 |
CONTACTEUR BRAKE FRONT OEM MOTO GUZZI COMMON A LA RANGE 2005 <-GU30749860 More informationQuantity required : 1 |
||||||
|
4 |
GU30605680-LEVER BRAKE More informationQuantity required : 1 |
||||||
|
5 |
GU27604815-PIVOT More informationQuantity required : 1 |
||||||
|
6 |
AP8113203-CAVALIER LEVER BRAKE More informationQuantity required : 1 |
||||||
|
7 |
GU27663615 - CAPUCHON More informationQuantity required : 1 |
||||||
|
8 |
GU31658865-TUBE BRAKE FRONT More informationQuantity required : 1 |
||||||
|
9 |
GU95990028 - VIS TUYAU HUILE * More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/9/4/9/img/129949.jpg)
10 |
WASHER HOSE BRAKE (10X1. 5X1) OEM MOTO GUZZI COMMON A LA RANGE-GU25656100 More informationQuantity required : 10 |
||||||
|
11 |
GU30658825-TUBE BRAKE FRONT More informationQuantity required : 2 |
||||||
|
12 |
GU30652225-PINCE BRAKE FRONT D More informationQuantity required : 1 |
||||||
|
13 |
GU30652325 - PINCE FREIN AV G More informationQuantity required : 1 |
||||||
|
14 |
GU92295708 - BILLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/1/3/img/71313.jpg)
15 |
BRAKE PADS REAR OEM PIAGGIO MOTI-GUZZI CALIFORNIA 2012 >, AUDACE 2015 >, ELDORADO 2015 >, BELLAGIO (PAIRE)-AP8113627 More informationQuantity required : 1 |
||||||
|
16 |
GU30659127 - KIT REVISION PINCE More informationQuantity required : 1 |
||||||
|
17 |
GU30659200-PURGE + CAPUCHON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/1/5/9/img/133159.jpg)
18 |
SCREW BTR (8X35) OEM PIAGGIO COMMON A LA RANGE-GU98680435 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/4/8/img/73448.jpg)
19 |
WASHER (8, 4X13X0, 8) OEM PIAGGIO COMMON A LA RANGE-GU14615901 More informationQuantity required : 4 |
||||||
|
20 |
GU30655630 - BRIDE More informationQuantity required : 1 |
||||||
|
21 |
GU98612316-SCREW M6X16 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/2/img/71912.jpg)
22 |
WASHER (6, 4X10X, 7) OEM PIAGGIO COMMON A LA RANGE-AP8152105 More informationQuantity required : 2 |
||||||
|
23 |
GU66656830-FITTING BRAKE More informationQuantity required : 1 |
||||||
|
24 |
GU29217960-WASHER 5, 9X3X0, 8 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/0/9/8/img/133098.jpg)
25 |
SCREW BTR (5X16) OEM PIAGGIO COMMON A LA RANGE-GU98612216 More informationQuantity required : 2 |
||||||
|
26 |
GU98200214 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/4/5/7/img/132457.JPG)
27 |
NUT (1X4) SERRAGE BRAKE MASTER CYLINDER AV OEM PIAGGIO MOTO-GUZZI-GU92601002 More informationQuantity required : 2 |
||||||
|
28 |
GU23655770 - OEILLET More informationQuantity required : 1 |
||||||
|
29 |
GU91551120 - BAGUE More informationQuantity required : 1 |
