Vehicle Exploded View - MOTO-GUZZI QUOTA 1100 Quota ES 1100 1998-2002
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

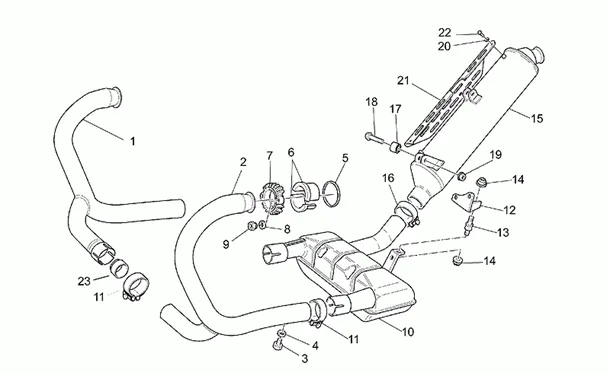

Chassis : 33.32 GROUPE ECHAPPEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/921/Quota_ES_1100_1998-2002_33.32.png)
1 |
GU30120925-HOSE EXHAUST D. More informationQuantity required : 1 |
||||||
|
2 |
GU30120926-HOSE EXHAUST GCHE More informationQuantity required : 1 |
||||||
|
3 |
GU98110007-CAP More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/5/7/4/img/130574.jpg)
4 |
GASKET CAP COUDE EXHAUST OEM COMMON A LA RANGE MOTO GUZZI-GU30109330 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/5/5/0/1/img/125501.jpg)
5 |
GASKET EXHAUST SORTIE CYLINDER HEAD OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-GU90718370 More informationQuantity required : 2 |
||||||
|
6 |
GU37121205 - ENTRETOISE More informationQuantity required : 4 |
||||||
|
7 |
GU01121030-FLANGIA More informationQuantity required : 2 |
||||||
|
7 |
GU03121000 - BRIDE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/4/8/img/73448.jpg)
8 |
WASHER (8, 4X13X0, 8) OEM PIAGGIO COMMON A LA RANGE-GU14615901 More informationQuantity required : 4 |
||||||
|
9 |
GU92750085 - ECROU More informationQuantity required : 4 |
||||||
|
10 |
GU30123930-CHAMBRE DE DETENTE More informationQuantity required : 1 |
||||||
|
11 |
GU30123400 - COLLIER More informationQuantity required : 3 |
||||||
|
12 |
GU30123830-PLATE More informationQuantity required : 1 |
||||||
|
13 |
GU93212520-SILENT BLOCK More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/5/3/8/img/132538.jpg)
14 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M8) OEM PIAGGIO COMMON A LA RANGE-GU92660208 More informationQuantity required : 2 |
||||||
|
15 |
GU30123025 - SILENCIEUX More informationQuantity required : 1 |
||||||
|
15 |
GU30123030-SILENCER More informationQuantity required : 1 |
||||||
|
16 |
GU30126930-CLAMP More informationQuantity required : 1 |
||||||
|
17 |
GU93202208 - SILENT BLOCK More informationQuantity required : 2 |
||||||
|
18 |
GU98230840 - VIS More informationQuantity required : 1 |
||||||
|
19 |
GU92660008-NUT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/9/2/4/img/131924.jpg)
20 |
WASHER SPRING (6. 7X11. 8X0. 4) OEM PIAGGIO COMMON A LA RANGE-GU61013800 More informationQuantity required : 3 |
||||||
|
21 |
GU30121930 - PROTECT.SILENCIEUX More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/6/4/img/71864.jpg)
22 |
SCREW BTR HEAD BOMBEE (6X12) OEM PIAGGIO COMMON A LA RANGE-AP8150340 More informationQuantity required : 3 |
||||||
|
22 |
SCREW BTR HEAD BOMBEE (6X12) OEM PIAGGIO COMMON A LA RANGE-AP8150340 More informationQuantity required : 3 |
||||||
|
23 |
GU30121625 - JOINT More informationQuantity required : 1 |
