Vehicle Exploded View - MOTO-GUZZI QUOTA 1100 Quota ES 1100 1998-2002
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

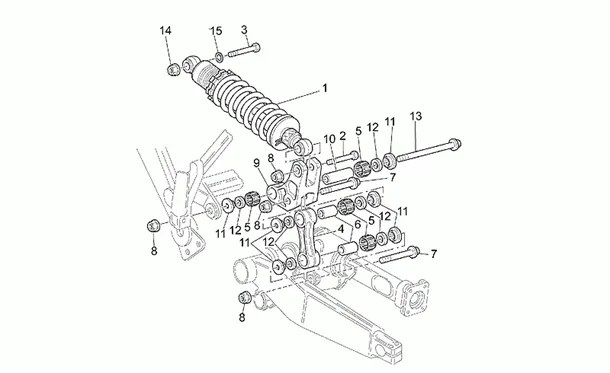

Chassis : 33.18 SUSPENSION ARRIERE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/921/Quota_ES_1100_1998-2002_33.18.png)
1 |
GU30550225 - AMORTISSEUR BITUBO More informationQuantity required : 1 |
||||||
|
2 |
GU30555225-SCREW More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/1/5/5/1/img/101551.jpg)
3 |
SCREW TH (10X59) OEM PIAGGIO COMMON A LA RANGE-GU01357731 More informationQuantity required : 1 |
||||||
|
4 |
GU30562630 - BIELLE SIMPLE COMPLETE More informationQuantity required : 1 |
||||||
|
5 |
GU92252030 - ROULEMENT A ROULEAUX More informationQuantity required : 4 |
||||||
|
6 |
GU30561831 - BAGUE More informationQuantity required : 2 |
||||||
|
7 |
GU30562030 - PIVOT BIELLE More informationQuantity required : 2 |
||||||
|
8 |
GU92660210 - ECROU More informationQuantity required : 4 |
||||||
|
9 |
GU30560430 - CULBUTEUR CPL. More informationQuantity required : 1 |
||||||
|
10 |
GU30562931 - BAGUE More informationQuantity required : 1 |
||||||
|
11 |
GU30563030 - ENTRETOISE More informationQuantity required : 6 |
||||||
|
12 |
GU90402026 - BAGUE D'ETANCHEITE More informationQuantity required : 6 |
||||||
|
13 |
GU30560825 - PIVOT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/5/0/8/img/132508.jpg)
14 |
NUT AUTOBLOQUANT/NYLSTOP (10X1. 25) OEM PIAGGIO COMMON A LA RANGE-GU92630410 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/7/2/4/img/132724.jpg)
15 |
WASHER/SPACER (10X30X4) OEM PIAGGIO COMMON A LA RANGE-GU95100303 More informationQuantity required : 1 |
