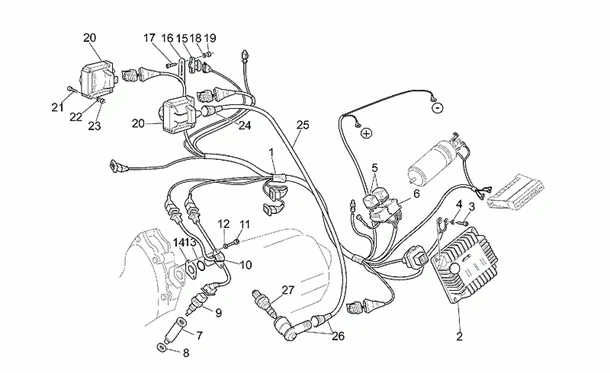

Moteur : 34.21 ALLUMAGE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/921/Quota_ES_1100_1998-2002_34.21.png)
1 |
GU30725825 - CABLES INJECTION More informationQuantity required : 1 |
||||||
|
2 |
GU30729527-CENTRALINA ACC. ELETTR More informationQuantity required : 1 |
||||||
|
3 |
GU98622216-SCREW More informationQuantity required : 4 |
||||||
|
4 |
GU95000205-WASHER More informationQuantity required : 4 |
||||||
|
5 |
GU30732560 - RELAIS SIEMENS A302/B1008 More informationQuantity required : 2 |
||||||
|
6 |
GU30732400-BRACKET RELAIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/2/5/1/1/img/102511.jpg)
7 |
BRACKET SENSOR TEMPERATURE OIL OEM PIAGGIO COMMON A LA RANGE MOTO GUZZI-GU03163330 More informationQuantity required : 1 |
||||||
|
8 |
GU95004210 - RONDELLE 10,2X18X2 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/4/4/6/img/130446.jpg)
9 |
SENSOR FOR OIL TEMPERATURE "PIAGGIO GENUINE PART" COMMUN A LA GAMME MOTO-GUZZI - GU29729461 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/1/9/4/7/img/101947.jpg)
10 |
SENSOR OF PHASE/REGIME OEM PIAGGIO MOTO-GUZZI 750-1100-1200 BREVA, NORGE, GRISO, 1200 STELVIO, SPORT, 1100 CALIFORNIA, V11, 750 V7, 940 BELLAGIO-GU01721600 More informationQuantity required : 1 |
||||||
|
11 |
GU98622212-SCREW More informationQuantity required : 2 |
||||||
|
12 |
GU95004205-WASHER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/7/9/img/69479.jpg)
13 |
O-RING CIRCUIT ALIMENTATION OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-847180 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/1/9/4/8/img/101948.jpg)
14 |
GASKET SENSOR PHASE/TOURS (0. 3MM) OEM MOTO GUZZI BELLAGIO, GRISO, NORGE-GU01722700 More informationQuantity required : 1 |
||||||
|
14 |
GU01722701-GUARNIZIONE 0, 4MM More informationQuantity required : 1 |
||||||
|
14 |
GU01722702-GUARNIZIONE 0, 6MM More informationQuantity required : 1 |
||||||
|
14 |
GASKET SENSOR PHASE/TOURS (0. 8MM) OEM MOTO GUZZI BELLAGIO, GRISO, NORGE-GU01722703 More informationQuantity required : 1 |
||||||
|
14 |
GASKET SENSOR PHASE/TOURS (1MM) OEM MOTO GUZZI BELLAGIO, GRISO, NORGE-GU01722704 More informationQuantity required : 1 |
||||||
|
14 |
GU01722705-GUARNIZIONE 1, 5MM More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/4/3/9/img/130439.jpg)
14 |
GASKET SENSOR PHASE/TOURS (0. 5MM) OEM MOTO GUZZI BELLAGIO, GRISO, NORGE-GU29722760 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/6/6/img/73466.jpg)
15 |
DETECTEUR DE TEMPERATURE AIR OEM APRILIA-MOTO-GUZZI COMMON A LA RANGE-GU30729330 More informationQuantity required : 1 |
||||||
|
16 |
GU02728200 - PIASTRINA More informationQuantity required : 1 |
||||||
|
17 |
GU98610110-SCREW More informationQuantity required : 2 |
||||||
|
18 |
GU95120032-WASHER More informationQuantity required : 2 |
||||||
|
19 |
GU92601003 - ECROU More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/9/3/3/img/130933.jpg)
20 |
BOBINE IGNITION OEM PIAGGIO MOTO-GUZZI 1100 CALIFORNIA 1994 > 2004, 1200 GRISO 2007 > 2017, 750 V7 2008 > 2012, 1200 NORGE 2010 >, 1200 SPORT 2008 > 2013, 1100 V11 1999 > 2005-GU30716500 More informationQuantity required : 2 |
||||||
|
21 |
|
||||||
|
22 |
GU95000204 - RONDELLE More informationQuantity required : 4 |
||||||
|
23 |
GU92630104-NUT M4X0, 7 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/2/8/1/img/129281.jpg)
24 |
CAPUCHON/RUBBER HT OEM MOTO GUZZI COMMON A LA RANGE-GU14717600 More informationQuantity required : 2 |
||||||
|
25 |
GU30718325 - CABLE HAUTE TENSION More informationQuantity required : 2 |
||||||
|
26 |
AP8212219 - PIPE BOUGIE BLINDEE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/9/3/5/img/130935.jpg)
27 |
SPARK PLUG BPR6ES OEM PIAGGIO COMMON A LA RANGE-GU30717061 More informationQuantity required : 2 |
