Vehicle Exploded View - MOTO-GUZZI QUOTA 1100 Quota ES 1100 1998-2002
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

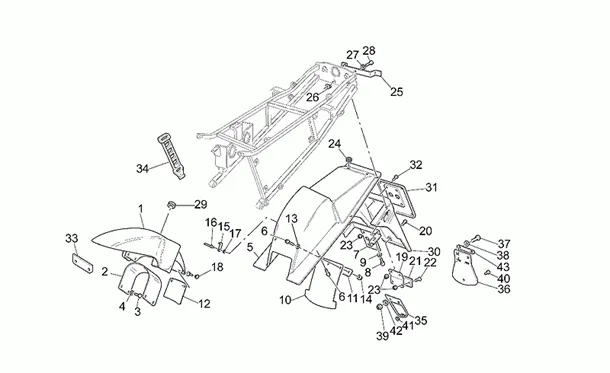

Chassis : 33.14 GARDE-BOUE AV./ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/921/Quota_ES_1100_1998-2002_33.14.png)
1 |
GU30434425 - GARDE-BOUE AV.BRUT More informationQuantity required : 1 |
||||||
|
2 |
GU30436630-1/2 CLAMP More informationQuantity required : 1 |
||||||
|
3 |
GU98054320-SCREW M6X20 More informationQuantity required : 4 |
||||||
|
4 |
GU95000206-WASHER More informationQuantity required : 4 |
||||||
|
5 |
GU30437125 - GARDE-BOUE AR. More informationQuantity required : 1 |
||||||
|
6 |
GU98230616-SCREW More informationQuantity required : 7 |
||||||
|
7 |
GU30438530 - SUPP JUPE ANTI-ECLAB. More informationQuantity required : 1 |
||||||
|
8 |
GU98612320-SCREW More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/9/2/4/img/131924.jpg)
9 |
WASHER SPRING (6. 7X11. 8X0. 4) OEM PIAGGIO COMMON A LA RANGE-GU61013800 More informationQuantity required : 2 |
||||||
|
10 |
GU30438930 - PROTECTION AMORTISSEUR More informationQuantity required : 1 |
||||||
|
11 |
GU30439330-PLATE More informationQuantity required : 1 |
||||||
|
12 |
|
||||||
|
13 |
GU95100118-WASHER 6, 2X18X1 More informationQuantity required : 3 |
||||||
|
14 |
GU92630206-NUT M6X1 More informationQuantity required : 3 |
||||||
|
15 |
GU30479330 - CROCHET More informationQuantity required : 2 |
||||||
|
16 |
GU17918556-RIVET A DECLIC More informationQuantity required : 2 |
||||||
|
17 |
GU95000203 - RONDELLE More informationQuantity required : 2 |
||||||
|
18 |
GU91881312 - RIVET More informationQuantity required : 3 |
||||||
|
19 |
GU30437430-PLATE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/6/5/img/73565.jpg)
20 |
SCREW BTR (4. 80X14) OEM PIAGGIO COMMON A LA RANGE-GU98370515 More informationQuantity required : 2 |
||||||
|
21 |
GU31745860-CATADIOPTRE More informationQuantity required : 1 |
||||||
|
22 |
SCREW BTR (4. 80X14) OEM PIAGGIO COMMON A LA RANGE-GU98370515 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/5/0/0/img/132500.jpg)
23 |
NUT AUTOBLOQUANT/NYLSTOP (M5) OEM PIAGGIO COMMON A LA RANGE-GU92630105 More informationQuantity required : 6 |
||||||
|
24 |
GU91551062-RUBBER More informationQuantity required : 2 |
||||||
|
25 |
GU30468230-FLANGE More informationQuantity required : 1 |
||||||
|
26 |
GU92660601-NUT EN CAGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/4/2/2/img/130422.jpg)
27 |
GU29577860 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/6/4/img/71864.jpg)
28 |
SCREW BTR HEAD BOMBEE (6X12) OEM PIAGGIO COMMON A LA RANGE-AP8150340 More informationQuantity required : 1 |
||||||
|
28 |
SCREW BTR HEAD BOMBEE (6X12) OEM PIAGGIO COMMON A LA RANGE-AP8150340 More informationQuantity required : 1 |
||||||
|
29 |
GU93180216-RUBBER More informationQuantity required : 1 |
||||||
|
30 |
GU30474630-MUD FLAP ANTI-ECLABOUSSURES More informationQuantity required : 1 |
||||||
|
31 |
GU01474630-PORTATARGA More informationQuantity required : 1 |
||||||
|
32 |
GU98054216-SCREW More informationQuantity required : 4 |
||||||
|
33 |
GU30436725 - PLAQUETTE More informationQuantity required : 2 |
||||||
|
34 |
GU29728960-ELASTIC OF FITTING KIT More informationQuantity required : 1 |
||||||
|
35 |
GU30438102 - SUPP JUPE ANTI-ECLAB. More informationQuantity required : 1 |
||||||
|
36 |
GU27436910 - BAVETTE ANTI-ECLABOUSSURES More informationQuantity required : 1 |
||||||
|
37 |
840548-SCREW More informationQuantity required : 4 |
||||||
|
38 |
GU95007205 - RONDELLE More informationQuantity required : 2 |
||||||
|
39 |
GU92630205 - ECROU More informationQuantity required : 4 |
||||||
|
40 |
GU23922210-PIVOT More informationQuantity required : 1 |
||||||
|
41 |
GU95100123-WASHER More informationQuantity required : 1 |
||||||
|
42 |
GU95000205-WASHER More informationQuantity required : 2 |
