Vehicle Exploded View - PIAGGIO VU QUARGO 0 Diesel 750cc 2004-2006
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

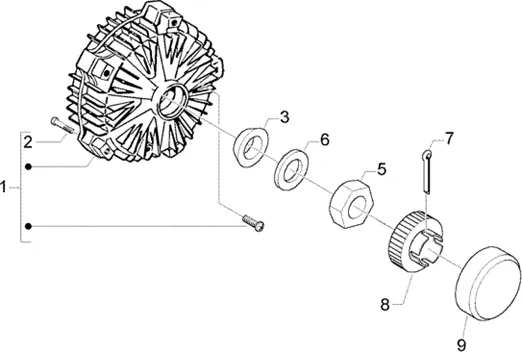

Suspensions-roues : T28 TAMBOUR FREIN
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/334/Quargo_Diesel_750cc_2004-2006_T28.PNG)
1 |
56567R - TAMBOUR More informationQuantity required : 4 |
||||||
|
2 |
615988 STUD More informationQuantity required : 20 |
||||||
|
3 |
178193 CONE * More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/3/4/2/img/111342.jpg)
5 |
NUT (M20X1. 5) OEM PIAGGIO COMMON A LA RANGE-021120 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/1/0/8/img/111108.jpg)
6 |
WASHER APPUI (20. 1X32. 5X2, 5) OEM PIAGGIO THREE-WHEELER APE COMMON A LA RANGE-078186 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/9/3/2/img/110932.jpg)
7 |
GOUPILLE (4X28) OEM PIAGGIO COMMON A LA RANGE-012790 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/4/8/7/img/111487.jpg)
8 |
CHAPEAU ARRET NUT OEM PIAGGIO THREE-WHEELER APE TM 703-175493 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/4/7/2/img/110472.jpg)
9 |
CAP TAMBOUR OF BRAKE OEM PIAGGIO THREE-WHEELER APE TM 703 1997 >-566122 More informationQuantity required : 4 |
