Vehicle Exploded View - PIAGGIO VU QUARGO 0 Diesel 750cc 2004-2006
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

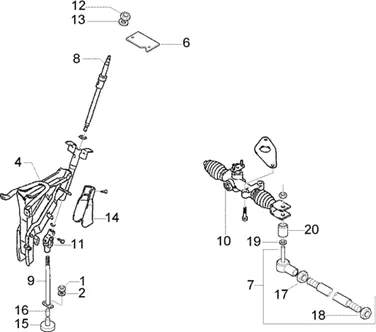

Châssis : T21 ARBRE ET BOÎTIER DE DIRECTION
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/334/Quargo_Diesel_750cc_2004-2006_T21.PNG)
1 |
015344 NUT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/2/8/5/img/110285.jpg)
2 |
WASHER NYLON STEERING OEM PIAGGIO PORTER 2020 <-D9004202038 More informationQuantity required : 1 |
||||||
|
3 |
4534287502000 COVER More informationQuantity required : 1 |
||||||
|
4 |
613687 - SUPPORT More informationQuantity required : 1 |
||||||
|
6 |
612284 - EQUERRE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/8/6/4/7/img/118647.jpg)
7 |
BIELLETTE DE STEERING WITH ROTULE OEM PIAGGIO PORTER 2020 <-652234 More informationQuantity required : 2 |
||||||
|
8 |
614819 BRACKET VOLANT More informationQuantity required : 1 |
||||||
|
9 |
D4522087Z01 - ARBRE More informationQuantity required : 1 |
||||||
|
10 |
CREMAILLERE/HOUSING DE STEERING COMPLETE OEM PIAGGIO PORTER 1998 > 2009-1R000325 More informationQuantity required : 1 |
||||||
|
11 |
658011 ACCOUPLEMENT More informationQuantity required : 1 |
||||||
|
12 |
9004170014000 NUT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/2/2/8/img/110228.jpg)
13 |
WASHER GROWER D12 OEM PIAGGIO COMMON A LA RANGE-D9451101200 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/3/3/5/2/img/113352.jpg)
14 |
COVER DE STEERING OEM PIAGGIO PORTER 1992 > 2010-4523387Z01000 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/9/2/5/img/111925.jpg)
15 |
PROTECTOR POUSSIERE SHAFT INTERMEDIAIRE DE STEERING OEM PIAGGIO PORTER 1995 < 2009-4522287Z01000 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/3/7/6/2/img/113762.jpg)
16 |
BUSH DE STEERING (21. 5X1615X10) OEM PIAGGIO CARGO-9004387066000 More informationQuantity required : 1 |
||||||
|
17 |
9004170035000 - ECROU More informationQuantity required : 2 |
||||||
|
18 |
9412541400000 NUT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/3/4/0/9/img/113409.jpg)
19 |
9004210027000 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/1/0/0/4/img/121004.jpg)
20 |
BUSH HOUSING DE STEERING OEM PIAGGIO PORTER 1992 > 2020 9004389104000 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/2/9/2/7/img/122927.jpg)
21 |
BRACKET CONTACTEUR/NEIMAN OEM PIAGGIO PORTER 1993 > 2010-D4502087506 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/7/3/1/9/img/117319.jpg)
22 |
4589712020000 - BOULON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/1/3/4/4/img/121344.jpg)
23 |
HARNESS DE IGNITION SWITCH OEM PIAGGIO PORTER 01/10/1993 > 2009-8445087527000 More informationQuantity required : 1 |
