Vehicle Exploded View - PIAGGIO VU QUARGO 0 Diesel 750cc 2004-2006
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

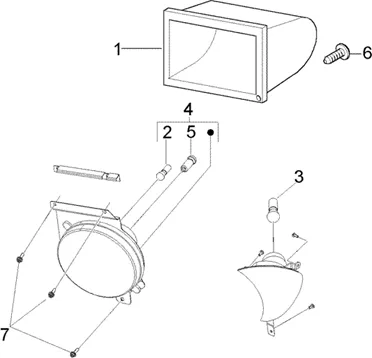

Connexions électriques : T60 PROJECTEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/334/Quargo_Diesel_750cc_2004-2006_T60.PNG)
1 |
B000979 COVER HEADLAMP More informationQuantity required : 2 |
||||||
|
2 |
AMPOULE/LAMPE 12V 5W W2, 1X9, 5D OEM PIAGGIO COMMON A LA RANGE-9913211050000 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/5/8/img/65758.jpg)
3 |
AMPOULE/LAMPE 12V 21W BA15S/R10 OEM PIAGGIO COMMON A LA RANGE-160654 More informationQuantity required : 2 |
||||||
|
4 |
613771 HEADLAMP AVD More informationQuantity required : 1 |
||||||
|
4 |
613772 HEADLAMP AVG More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/5/6/img/66256.jpg)
5 |
AMPOULE/LAMPE 12V 60/55W H4 OEM PIAGGIO COMMON A LA RANGE-292723 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/2/0/9/5/img/112095.jpg)
6 |
SCREW PARKER (5X22) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-9356055012000 More informationQuantity required : 2 |
||||||
|
7 |
D9338515020 SCREW More informationQuantity required : 6 |
||||||
|
8 |
613773 INDICATORE DIREZ. DX More informationQuantity required : 1 |
||||||
|
8 |
613774 INDICATORE DIREZ. SX More informationQuantity required : 1 |
