Vehicle Exploded View - PIAGGIO VU QUARGO 0 Diesel 750cc 2004-2006
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

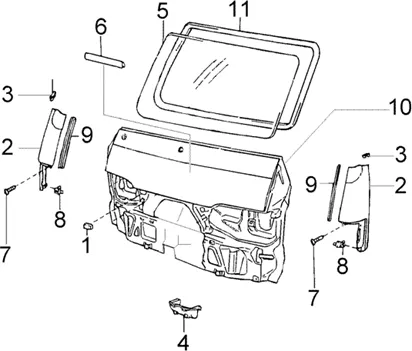

Châssis : T39 PANNEAU AV. ET PARE-BRISE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/334/Quargo_Diesel_750cc_2004-2006_T39.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/2/0/9/img/110209.jpg)
1 |
CAP/COVER OEM PIAGGIO PORTER 2020 <-D9004874004 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/7/4/2/6/img/117426.jpg)
2 |
PANEL DE CARROSSERIE FRONT RIGHT OEM PIAGGIO PORTER 2020-5660835 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/7/4/2/4/img/117424.jpg)
2 |
PANEL DE CARROSSERIE FRONT LEFT OEM PIAGGIO PORTER 2020 <-5660845 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/6/9/7/img/110697.jpg)
3 |
PROTECTOR SIDE PANEL OEM PIAGGIO PORTER 2020 <-D5382187Z01 More informationQuantity required : 2 |
||||||
4 |
COUVERCLE |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/3/4/4/0/img/123440.jpg)
5 |
WINDSCREEN OEM PIAGGIO PORTER 2020 <-B007324 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/4/5/1/img/111451.jpg)
6 |
PROTECTOR FRONT PANEL FRONT OEM PIAGGIO PORTER 2020 <-D5574187Z01 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/5/4/6/img/110546.jpg)
7 |
SCREW CRUCIFORME (5X13) OEM PIAGGIO COMMON A LA RANGE-CM288614 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/3/6/7/img/110367.jpg)
8 |
CLIPS OEM PIAGGIO PORTER 2020 <-D9004467076 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/2/6/8/0/img/112680.jpg)
9 |
PROTECTOR DE PANEL LATERAL FRONT OEM PIAGGIO PORTER 2020 <-5382387Z011306 More informationQuantity required : 2 |
||||||
|
10 |
FACE AV HC |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/0/3/6/0/img/120360.jpg)
11 |
GASKET OF PROTECTOR-SCREEN FRONT OEM PIAGGIO PORTER 2020 <-5612187Z01000 More informationQuantity required : 1 |
All the exploded views of this vehicle
-
