Vehicle Exploded View - PIAGGIO VU QUARGO 0 Diesel 750cc 2004-2006
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

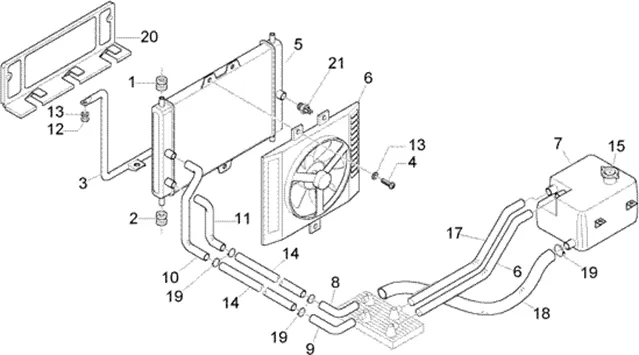

Moteur : T16 RADIATEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/334/Quargo_Diesel_750cc_2004-2006_T16.PNG)
1 |
614861 BUFFER More informationQuantity required : 2 |
||||||
|
2 |
614860 BUFFER More informationQuantity required : 2 |
||||||
|
3 |
644420 BRACKET More informationQuantity required : 1 |
||||||
|
4 |
Vis |
||||||
|
5 |
644505 RADIATOR More informationQuantity required : 1 |
||||||
|
6 |
644304 - VENTILATEUR RADIATEU More informationQuantity required : 1 |
||||||
|
7 |
615655 - VASE EXPEN More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/6/6/1/9/img/116619.jpg)
8 |
HOSE/HOSE DE RADIATOR OEM PIAGGIO CARGO-614848 More informationQuantity required : 1 |
||||||
|
9 |
613819 TUBE More informationQuantity required : 1 |
||||||
|
10 |
613818 TUBE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/5/2/2/7/img/115227.jpg)
11 |
HOSE RADIATOR OEM PIAGGIO CARGO 2007 > 2017-613712 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/1/img/65341.jpg)
12 |
NUT AUTOBLOQUANT/NYLSTOP (M5) OEM PIAGGIO COMMON A LA RANGE-012112 More informationQuantity required : 2 |
||||||
|
13 |
224664-WASHER More informationQuantity required : 3 |
||||||
|
14 |
B000643 TUBE RADIATOR More informationQuantity required : 1 |
||||||
|
15 |
616813 - BOUCHON More informationQuantity required : 1 |
||||||
|
16 |
CANALISAT. |
||||||
|
17 |
CANALISAT. |
||||||
|
18 |
CANALISAT. |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/9/8/img/68498.jpg)
19 |
HOSE CLAMP WITH SCREW WITHOUT FIN (30-45MM) OEM PIAGGIO COMMON A LA RANGE-709677 More informationQuantity required : 8 |
||||||
|
20 |
644435 PROTEZIONE RADIATORE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/9/5/3/0/img/119530.jpg)
21 |
CONTACTEUR RADIATOR OEM PIAGGIO CARGO 2004 >-644303 More informationQuantity required : 1 |
