Vehicle Exploded View - PIAGGIO VU QUARGO 0 Diesel 750cc 2004-2006
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

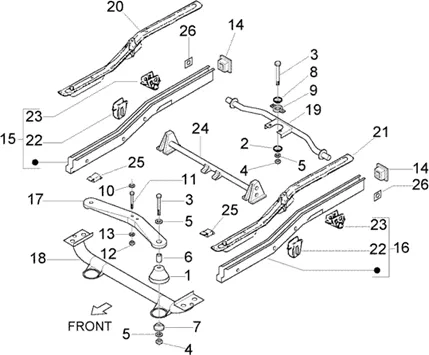

Châssis : T42 CHASSIS ARRIERE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/334/Quargo_Diesel_750cc_2004-2006_T42.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/5/1/7/7/img/115177.jpg)
1 |
RUBBER MOUNT/BRACKET ENGINE OEM PIAGGIO THREE-WHEELER APE CLASSIC, CALESSINO, TM 703 DIESEL-265091 More informationQuantity required : 2 |
||||||
2 |
271171 PIATTELLO More informationQuantity required : 1 |
||||||
|
3 |
015582 SCREW S01558200 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/6/5/img/63765.jpg)
4 |
NUT AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-002440 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/0/6/2/img/110062.jpg)
5 |
WASHER PLATE (10. 5X22X2. 5) OEM PIAGGIO COMMON A LA RANGE-0030404 More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/4/9/6/1/img/114961.jpg)
6 |
SPACER T1 OEM PIAGGIO THREE-WHEELER APE-219299 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/9/9/2/img/111992.jpg)
7 |
SPACER CARROSSERIE OEM PIAGGIO THREE-WHEELER APE-218758 More informationQuantity required : 2 |
||||||
|
8 |
615281 CUVETTE More informationQuantity required : 1 |
||||||
|
9 |
266743 - C/C SUPPORT MOTEUR ATD-T1 CULASSE More informationQuantity required : 1 |
||||||
|
10 |
ARRET |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/1/9/img/65619.jpg)
11 |
SCREW TH (8X90) OEM PIAGGIO COMMON A LA RANGE-030084 More informationQuantity required : 2 |
||||||
|
12 |
002418 NUT More informationQuantity required : 2 |
||||||
|
12 |
002418 NUT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/9/img/63779.jpg)
13 |
WASHER PLATE (8, 4X15X1, 5) OEM PIAGGIO COMMON A LA RANGE-003058 More informationQuantity required : 2 |
||||||
|
14 |
614470 CAP More informationQuantity required : 2 |
||||||
|
15 |
6133345 BRACKET More informationQuantity required : 1 |
||||||
|
15 |
6148065 BRACKET More informationQuantity required : 1 |
||||||
|
16 |
6133325 BRACKET More informationQuantity required : 1 |
||||||
|
16 |
6148075 BRACKET More informationQuantity required : 1 |
||||||
|
17 |
613706 TRAVERSE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/1/5/5/8/img/121558.jpg)
18 |
TRAVERSE DE BRACKET ENGINE OEM PIAGGIO CARGO 2004 >-615654 More informationQuantity required : 1 |
||||||
|
19 |
644041 TRAVERSE More informationQuantity required : 1 |
||||||
|
20 |
6147915 LOCK More informationQuantity required : 1 |
||||||
|
20 |
6152075 LOCK More informationQuantity required : 1 |
||||||
|
21 |
6147905 LOCK More informationQuantity required : 1 |
||||||
|
21 |
6151985 - SERRURE More informationQuantity required : 1 |
||||||
|
22 |
615251 CHARNIERE More informationQuantity required : 1 |
||||||
|
22 |
615252 CHARNIERE More informationQuantity required : 1 |
||||||
|
23 |
614264 - SUPPORT More informationQuantity required : 1 |
||||||
|
23 |
614265 - SUPPORT More informationQuantity required : 1 |
||||||
|
24 |
614450 HOSE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/2/0/9/img/110209.jpg)
25 |
CAP/COVER OEM PIAGGIO PORTER 2020 <-D9004874004 More informationQuantity required : 4 |
||||||
|
26 |
5175787Z01000 BRACKET More informationQuantity required : 2 |
