Vehicle Exploded View - PIAGGIO VU QUARGO 0 Diesel 750cc 2004-2006
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

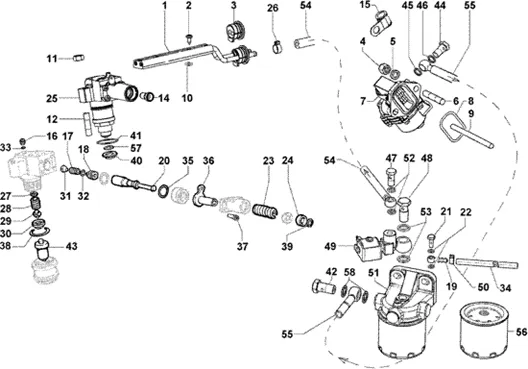

Moteur : T7 CIRCUIT COMBUSTIBLE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/334/Quargo_Diesel_750cc_2004-2006_T7.PNG)
1 |
850303 HOSE More informationQuantity required : 1 |
||||||
|
2 |
493271 SCREW More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/3/3/6/5/img/113365.jpg)
3 |
GASKET OF HOSE DE REFOULEMENT OEM PIAGGIO PORTER DIESEL 1998 > 2005-493132 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/1/4/1/img/110141.jpg)
4 |
NUT (8) OEM PIAGGIO COMMON A LA RANGE-850270 More informationQuantity required : 2 |
||||||
|
5 |
850111 NUT More informationQuantity required : 2 |
||||||
|
6 |
GOUJON M8 X 20 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/0/4/8/3/img/120483.jpg)
7 |
PUMP ALIMENTATION OEM PIAGGIO CARGO DIESEL-850055 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/2/9/3/img/111293.jpg)
8 |
O-RING D'INJECTEUR OEM PIAGGIO PORTER, CARGO DIESEL-493009 More informationQuantity required : 1 |
||||||
|
9 |
493897 PUNTALINO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/2/1/1/img/111211.jpg)
10 |
BUSH ETANCHEITE (9. 25X1. 78) INJECTEUR OEM PIAGGIO PORTER, CARGO DIESEL-493016 More informationQuantity required : 4 |
||||||
|
11 |
ECROU |
||||||
|
11 |
ECROU |
||||||
|
12 |
GOUJON |
||||||
|
13 |
850111 NUT More informationQuantity required : 4 |
||||||
|
14 |
493030 POUSSOIR More informationQuantity required : 2 |
||||||
|
15 |
COLLIER |
||||||
|
16 |
493462 VALVE 1400 More informationQuantity required : 2 |
||||||
|
17 |
850273 SPRING More informationQuantity required : 2 |
||||||
|
18 |
493739 - SOUPAPE More informationQuantity required : 2 |
||||||
|
19 |
RACCORD |
||||||
|
20 |
ELEM POMPE 1400 |
||||||
|
21 |
493056 - BOULON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/0/4/8/img/110048.JPG)
22 |
GASKET FILTER GAZOIL PORTER (10X6X0. 4)-493126 More informationQuantity required : 2 |
||||||
|
23 |
850297 SPRING More informationQuantity required : 2 |
||||||
|
24 |
850274 - SPINTORE More informationQuantity required : 2 |
||||||
|
25 |
INJECTOR PUMP "PIAGGIO GENUINE PART" PORTER 1400 DIESEL -493460- More informationQuantity required : 2 |
||||||
|
26 |
850268 CLAMP More informationQuantity required : 1 |
||||||
|
27 |
EPAISSEUR |
||||||
|
27 |
EPAISSEUR 1,90 |
||||||
|
27 |
493212 - EPAISSEUR 1,80 More informationQuantity required : 2 |
||||||
|
27 |
493213 - EPAISSEUR 1,70 More informationQuantity required : 2 |
||||||
|
27 |
EPAISSEUR 1,60 |
||||||
|
27 |
493215 - EPAISSEUR 1,50 More informationQuantity required : 2 |
||||||
|
27 |
EPAISSEUR 1,40 |
||||||
|
27 |
EPAISSEUR 1,30 |
||||||
|
27 |
493218 EPAISSEUR 1, 20 More informationQuantity required : 2 |
||||||
|
27 |
493219 EPAISSEUR 1, 10 More informationQuantity required : 2 |
||||||
|
27 |
493220 EPAISSEUR 1, 00 More informationQuantity required : 2 |
||||||
|
28 |
850275 SPRING More informationQuantity required : 2 |
||||||
|
29 |
850276 ASTA DI COM. More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/8/7/0/4/img/118704.jpg)
30 |
SPACER 3527. 220 OEM PIAGGIO CARGO-850277 More informationQuantity required : 2 |
||||||
|
31 |
UGELLO |
||||||
|
32 |
493133 - JOINT More informationQuantity required : 2 |
||||||
|
33 |
850289 GASKET More informationQuantity required : 2 |
||||||
|
34 |
850082 CANALISAT. More informationQuantity required : 1 |
||||||
|
35 |
850343 CIRCLIPS 1200. 277 More informationQuantity required : 2 |
||||||
|
36 |
850279 - COM.REGOL. More informationQuantity required : 2 |
||||||
|
37 |
850280 SCREW More informationQuantity required : 8 |
||||||
|
38 |
493017 BUSH 25, 12 X 1, 78 More informationQuantity required : 2 |
||||||
|
39 |
493023 BUSH D 19 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/9/8/1/img/110981.jpg)
40 |
PROTECTOR FLAMME INJECTEUR OEM PIAGGIO CARGO-493151 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/6/2/4/9/img/116249.jpg)
41 |
493011 - BAGUE 26,70 X 1,78 More informationQuantity required : 2 |
||||||
|
42 |
493055 BOLT More informationQuantity required : 1 |
||||||
|
43 |
850366 - INIETTORE 6531.436 More informationQuantity required : 2 |
||||||
|
44 |
493054 - BOULON M 10 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/9/5/8/img/109958.jpg)
45 |
GASKET CUIVRE ALIMENTATION OEM PIAGGIO THREE-WHEELER APE CALESSINO 2007 > 2012/CLASSIC 2006 > 2013-493123 More informationQuantity required : 2 |
||||||
|
46 |
GASKET CUIVRE ALIMENTATION OEM PIAGGIO THREE-WHEELER APE CALESSINO 2007 > 2012/CLASSIC 2006 > 2013-493123 More informationQuantity required : 2 |
||||||
|
47 |
493054 - BOULON M 10 More informationQuantity required : 1 |
||||||
|
48 |
850281 SCREW More informationQuantity required : 1 |
||||||
|
49 |
ELECTROVANNE ARRET ENGINE OEM PIAGGIO CARGO DIESEL-615106 More informationQuantity required : 1 |
||||||
|
50 |
850282 CLAMP More informationQuantity required : 1 |
||||||
|
51 |
FILTER THROTTLE OIL COMPLETE WITH PUMP AMORCAGE OEM PIAGGIO CARGO-850305 More informationQuantity required : 1 |
||||||
|
52 |
GASKET CUIVRE ALIMENTATION OEM PIAGGIO THREE-WHEELER APE CALESSINO 2007 > 2012/CLASSIC 2006 > 2013-493123 More informationQuantity required : 2 |
||||||
|
53 |
566787 GASKET EN CUIVRE 1400 More informationQuantity required : 2 |
||||||
|
54 |
644419 TUBAZ. GASOL. More informationQuantity required : 1 |
||||||
|
55 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/8/7/2/1/img/118721.jpg)
56 |
FILTER A GAS-OIL OEM PIAGGIO CARGO DIESEL-850306 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/1/7/0/img/110170.jpg)
57 |
GASKET CUIVRE INJECTEUR OEM PIAGGIO PORTER DIESEL 1998 > 2005/CARGO 2004 >-493127 More informationQuantity required : 2 |
||||||
|
58 |
566787 GASKET EN CUIVRE 1400 More informationQuantity required : 2 |
