Vehicle Exploded View - PIAGGIO VU PORTER ESSENCE/GPL/MÉTHANE MAXXI 1000 Porter Maxxi Multitech E6 2015-2019 PIAGGIO VU

Moteur : 01.14 COURROIE DE DISTRIBUTION ET COUVERCLE

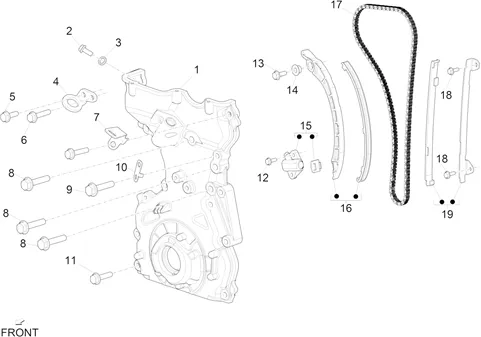

Courroie de distribution et couvercle
Search
1A005536 - COUVERCLE

1
P2R reference P2R reference 135127
Maker reference Maker reference 1A005536

1A005536 COVER

More information

Quantity required : 1

1A005539 - VIS FIX.

2
P2R reference P2R reference 134522
Maker reference Maker reference 1A005539

1A005539 SCREW FIX.

More information

Quantity required : 1

1A005540 - JOINT

3
P2R reference P2R reference 134525
Maker reference Maker reference 1A005540

1A005540 GASKET

More information

Quantity required : 1

1A005537 - EQUERRE

4
P2R reference P2R reference 134631
Maker reference Maker reference 1A005537

1A005537 BRACKET

More information

Quantity required : 1

B010079 - BOULON

5
P2R reference P2R reference 110941
Maker reference Maker reference B010079

B010079 BOLT

More information

Quantity required : 1

1A005482 - VIS FIX.

6
P2R reference P2R reference 134523
Maker reference Maker reference 1A005482

1A005482 SCREW FIX.

More information

Quantity required : 1

1A005542 - PLAQUETTE

7
P2R reference P2R reference 134620
Maker reference Maker reference 1A005542

1A005542 PLATE

More information

Quantity required : 1

1A005538 - VIS FIX.

8
P2R reference P2R reference 134575
Maker reference Maker reference 1A005538

1A005538 SCREW FIX.

More information

Quantity required : 3

B010231 - BOULON

9
P2R reference P2R reference 110917
Maker reference Maker reference B010231

B010231 BOLT

More information

Quantity required : 1

1A005541 - PLAQUETTE

10
P2R reference P2R reference 134629
Maker reference Maker reference 1A005541

1A005541 PLATE

More information

Quantity required : 1

B010221 - BOULON

11
P2R reference P2R reference 110925
Maker reference Maker reference B010221

B010221 BOLT

More information

Quantity required : 10

B010110 - BOULON

12
P2R reference P2R reference 110960
Maker reference Maker reference B010110

B010110 BOLT

More information

Quantity required : 2

B010101 - BOULON

13
P2R reference P2R reference 110962
Maker reference Maker reference B010101

B010101 BOLT

More information

Quantity required : 1

1A005544 - JOINT

14
P2R reference P2R reference 134557
Maker reference Maker reference 1A005544

1A005544 GASKET

More information

Quantity required : 1

TENDEUR DE CHAIN TIMING OEM PIAGGIO PORTER MULTITECH E6 2015 > 2020, NP6 2021 >-1A005545

15
P2R reference P2R reference 134984
Maker reference Maker reference 1A005545

TENDEUR DE CHAIN TIMING OEM PIAGGIO PORTER MULTITECH E6 2015 > 2020, NP6 2021 >-1A005545

More information

Quantity required : 1

PATIN/TENDEUR MOBILE DE CHAIN TIMING OEM PIAGGIO PORTER E6 2015 > 2020, NP6 2021 >-1A005549

16
P2R reference P2R reference 134876
Maker reference Maker reference 1A005549

PATIN/TENDEUR MOBILE DE CHAIN TIMING OEM PIAGGIO PORTER E6 2015 > 2020, NP6 2021 >-1A005549

More information

Quantity required : 1

CHAIN DE TIMING OEM PIAGGIO PORTER MULTITECH E6 2015 > 2020, NP6 2021 >-1A005548

17
P2R reference P2R reference 135001
Maker reference Maker reference 1A005548

CHAIN DE TIMING OEM PIAGGIO PORTER MULTITECH E6 2015 > 2020, NP6 2021 >-1A005548

More information

Quantity required : 1

1A005543 - VIS FIX.

18
P2R reference P2R reference 134514
Maker reference Maker reference 1A005543

1A005543 SCREW FIX.

More information

Quantity required : 2

PATIN/TENDEUR FIXE DE CHAIN TIMING OEM PIAGGIO PORTER E6 2015 > 2020, NP6 2021 >-1A005546

19
P2R reference P2R reference 134838
Maker reference Maker reference 1A005546

PATIN/TENDEUR FIXE DE CHAIN TIMING OEM PIAGGIO PORTER E6 2015 > 2020, NP6 2021 >-1A005546

More information

Quantity required : 1
