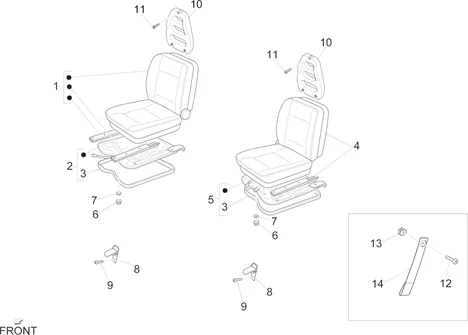

Vehicle Exploded View - PIAGGIO VU PORTER ESSENCE/GPL/MÉTHANE MAXXI 1000 Porter Maxxi Multitech E6 2015-2019 PIAGGIO VU

Châssis - parties plastiques - carrosseries : 02.33 SIÈGES AVANT
Sièges avant
Search
CM038401 - COUVERTURE MOTEUR DRT.

2
P2R reference P2R reference 121684
Maker reference Maker reference CM038401

CM038401 COVER ENGINE DRT.

More information

Quantity required : 1

GASKET OF SIEGE FRONT OEM PIAGGIO PORTER 2020 <-615932

3
P2R reference P2R reference 121735
Maker reference Maker reference 615932

GASKET OF SIEGE FRONT OEM PIAGGIO PORTER 2020 <-615932

More information

Quantity required : 1

CM038402 - COUVERTURE MOTEUR GAU.

5
P2R reference P2R reference 121683
Maker reference Maker reference CM038402

CM038402 PLATEAU ASSISE LEFT

More information

Quantity required : 1

NUT BORGNE (M8) OEM PIAGGIO COMMON A LA RANGE-658842

6
P2R reference P2R reference 114035
Maker reference Maker reference 658842

NUT BORGNE (M8) OEM PIAGGIO COMMON A LA RANGE-658842

More information

Quantity required : 2

WASHER (8, 15X13, 75X4, 5) OEM PIAGGIO COMMON A LA RANGE-016408

7
P2R reference P2R reference 65418
Maker reference Maker reference 0164085

WASHER (8, 15X13, 75X4, 5) OEM PIAGGIO COMMON A LA RANGE-016408

More information

Quantity required : 2

CHARNIERE SIEGE FRONT OEM PIAGGIO PORTER 2020 <-7137087Z01000

8
P2R reference P2R reference 114856
Maker reference Maker reference 7137087Z01000

CHARNIERE SIEGE FRONT OEM PIAGGIO PORTER 2020 <-7137087Z01000

More information

Quantity required : 2

SCREW TH (8X16) WITH WASHER OEM PIAGGIO PORTER COMMON A LA RANGE-9165140816000

9
P2R reference P2R reference 110045
Maker reference Maker reference 9165140816000

SCREW TH (8X16) WITH WASHER OEM PIAGGIO PORTER COMMON A LA RANGE-9165140816000

More information

Quantity required : 2

566864 - HEADREST

10
P2R reference P2R reference 120245
Maker reference Maker reference 566864

566864 HEADREST

More information

Quantity required : 2

D9327056012 - VIS

11
P2R reference P2R reference 109897
Maker reference Maker reference D9327056012

D9327056012 - VIS

More information

Quantity required : 6

D9356016014 - VIS

12
P2R reference P2R reference 109902
Maker reference Maker reference D9356016014

D9356016014 SCREW

More information

Quantity required : 1

GUIDE CABLE OEM PIAGGIO PORTER 2020 <-D9004189019

13
P2R reference P2R reference 110269
Maker reference Maker reference D9004189019

GUIDE CABLE OEM PIAGGIO PORTER 2020 <-D9004189019

More information

Quantity required : 1

7197387Z01030 - COLLIER

14
P2R reference P2R reference 114825
Maker reference Maker reference 7197387Z01030
Replaced by référence Replaced by référence 207660

7197387Z01030 - COLLIER

More information

Quantity required : 1
