Vehicle Exploded View - PIAGGIO VU PORTER ESSENCE/GPL/MÉTHANE MAXXI 1000 Porter Maxxi Multitech E6 2015-2019
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

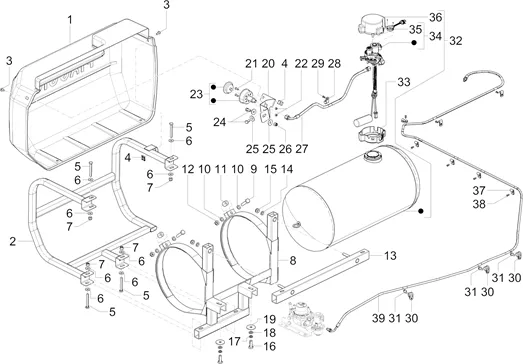

Gpl : 08.01 RÉSERVOIR CARBURANT GPL (PICK)
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/849/Porter_Maxxi_Multitech_E6_2015-2019_08.01.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/2/5/0/8/img/122508.jpg)
1 |
PROTECTOR/COVER DE TANK OEM PIAGGIO PORTER MAXXI-661143 More informationQuantity required : 1 |
||||||
2 |
PROTECTOR DE TANK GPL OEM PIAGGIO PORTER GPL MAXXI PICK 2008 > 2020-661142 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/1/7/img/66117.jpg)
3 |
SCREW TBC (6X16) OEM PIAGGIO COMMON A LA RANGE-272836 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
4 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 2 |
||||||
|
5 |
030079-BOLT S03007900 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/4/img/65364.jpg)
6 |
WASHER PLATE (8, 2X20X2, 5) OEM PIAGGIO COMMON A LA RANGE-013861 More informationQuantity required : 8 |
||||||
|
7 |
002418 NUT More informationQuantity required : 4 |
||||||
|
8 |
661146 BRACKET More informationQuantity required : 1 |
||||||
|
9 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/2/3/img/65423.jpg)
10 |
WASHER PLATE (10, 4X18X2) OEM PIAGGIO COMMON A LA RANGE-016626 More informationQuantity required : 4 |
||||||
|
11 |
660652 SPACER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/6/5/img/63765.jpg)
12 |
NUT AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-002440 More informationQuantity required : 2 |
||||||
|
13 |
661145 TRAVERSE More informationQuantity required : 1 |
||||||
|
14 |
WASHER PLATE (10, 4X18X2) OEM PIAGGIO COMMON A LA RANGE-016626 More informationQuantity required : 2 |
||||||
|
15 |
NUT AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-002440 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/5/1/img/65651.jpg)
16 |
SCREW TH (10X30) OEM PIAGGIOCOMMUN A LA RANGE-031157 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/2/9/img/71929.jpg)
17 |
WASHER GEAR OIL PUMP (10, 5X16X1) OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-AP8152220 More informationQuantity required : 2 |
||||||
|
18 |
WASHER PLATE (10, 4X18X2) OEM PIAGGIO COMMON A LA RANGE-016626 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/1/3/2/img/111132.jpg)
19 |
WASHER PLATE (10. 5X38X3) OEM PIAGGIO COMMON A LA RANGE-567427 More informationQuantity required : 2 |
||||||
|
20 |
661144 BRACKET More informationQuantity required : 1 |
||||||
|
21 |
|
||||||
|
22 |
|
||||||
|
23 |
B005795 PRISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/6/img/65646.jpg)
24 |
SCREW TH (8X22) OEM PIAGGIO COMMON A LA RANGE-031119 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/9/2/img/68492.jpg)
25 |
WASHER PLATE (8X24X2) OEM PIAGGIO COMMON A LA RANGE-709077 More informationQuantity required : 3 |
||||||
|
26 |
002418 NUT More informationQuantity required : 1 |
||||||
|
29 |
661065 - RIVET More informationQuantity required : 1 |
||||||
|
31 |
D9165260616 - BOULON More informationQuantity required : 3 |
||||||
|
31 |
D9165260616 - BOULON More informationQuantity required : 3 |
||||||
|
33 |
B005775 PROTECTOR More informationQuantity required : 1 |
||||||
|
34 |
JAUGE GPL OEM PIAGGIO PORTER MAXXI 2010 > 2020-B005794 More informationQuantity required : 1 |
||||||
|
35 |
661140 VERRE More informationQuantity required : 1 |
||||||
|
36 |
B005774 COVER More informationQuantity required : 1 |
||||||
|
37 |
660684 CLAMP More informationQuantity required : 7 |
||||||
|
38 |
661065 - RIVET More informationQuantity required : 7 |
