Vehicle Exploded View - PIAGGIO VU PORTER ESSENCE/GPL/MÉTHANE MAXXI 1000 Porter Maxxi Multitech E6 2015-2019
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

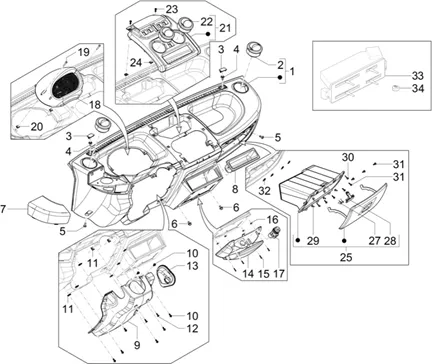

Guidon/direction : 03.02 GROUPE INSTRUMENTS - CRUSCOTTO
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/849/Porter_Maxxi_Multitech_E6_2015-2019_03.02.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/1/0/1/0/img/121010.jpg)
1 |
PANEL DE EDGE OEM PIAGGIO PORTER 2010 > 2020-B005907 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/5/3/6/7/img/115367.jpg)
2 |
DIFFUSEUR AIR HABITACLE OEM PIAGGIO PORTER 2010 > 2020-613323 More informationQuantity required : 2 |
||||||
3 |
613813 CAP More informationQuantity required : 2 |
||||||
|
4 |
D9163140616 BOLT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/1/7/img/66117.jpg)
5 |
SCREW TBC (6X16) OEM PIAGGIO COMMON A LA RANGE-272836 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/1/5/9/img/110159.jpg)
6 |
SCREW TH (6X14) WITH WASHER OEM PIAGGIO COMMON A LA RANGE-9004119537000 More informationQuantity required : 2 |
||||||
|
7 |
614794 COVER More informationQuantity required : 1 |
||||||
|
8 |
613276 DOOR-OBJETS More informationQuantity required : 1 |
||||||
|
9 |
B005909 COVER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/8/3/4/img/111834.jpg)
10 |
SCREW TORX DE PANEL DE EDGE OEM PIAGGIO PORTER 2020 <-B004853 More informationQuantity required : 8 |
||||||
|
11 |
D9004183025 NUT More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/5/img/66035.jpg)
12 |
SCREW AUTOTARAUDEUSE (4, 2X13) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-259349 More informationQuantity required : 2 |
||||||
|
14 |
613326 CENDRIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/0/0/img/65400.jpg)
15 |
SCREW PARKER (3. 5X16) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-015859 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/1/img/72921.jpg)
16 |
NUT SHEET METAL (3. 5 PARKER) OEM PIAGGIO COMMON A TOUTE LA RANGE-CM017403 More informationQuantity required : 4 |
||||||
|
17 |
565429 ALLUME CIGARE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/2/8/3/4/img/122834.jpg)
18 |
INSTRUMENT CLUSTER OEM PIAGGIO PORTER MULTITECH E6 2015 > 2020-1D000816 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/7/8/0/img/109780.jpg)
19 |
SCREW CRUCIFORME (4. 8X38) TARAUD OEM PIAGGIO COMMON A LA RANGE-614772 More informationQuantity required : 2 |
||||||
|
20 |
D9004183025 NUT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/1/9/5/img/151195.jpg)
21 |
PANEL DE CONTROL ON PANEL DE EDGE OEM PIAGGIO PORTER 2009 > 2020-1E002505 More informationQuantity required : 1 |
||||||
|
22 |
DIFFUSEUR AIR HABITACLE OEM PIAGGIO PORTER 2010 > 2020-613323 More informationQuantity required : 2 |
||||||
|
23 |
SCREW TORX DE PANEL DE EDGE OEM PIAGGIO PORTER 2020 <-B004853 More informationQuantity required : 2 |
||||||
|
24 |
D9004183025 NUT More informationQuantity required : 2 |
||||||
|
25 |
TIROIR COMPLETE DOOR OBJET OEM PIAGGIO PORTER 2010 > 2020-B005363 More informationQuantity required : 1 |
||||||
|
26 |
TIROIR COMPLETE DOOR OBJET OEM PIAGGIO PORTER 2010 > 2020-B005363 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/5/0/4/img/111504.jpg)
27 |
SPRING BOX A GANT OEM PIAGGIO PORTER 2020 <-5552587Z01000 More informationQuantity required : 1 |
||||||
|
28 |
644300 BUTTON More informationQuantity required : 1 |
||||||
|
29 |
9354054012000 SCREW More informationQuantity required : 3 |
||||||
|
30 |
B000973 BUFFER More informationQuantity required : 2 |
||||||
|
31 |
9356755016000 SCREW More informationQuantity required : 7 |
||||||
|
32 |
D9004183025 NUT More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/1/0/2/9/img/121029.jpg)
33 |
CONTROL DE CHAUFFAGE OEM PIAGGIO PORTER 2015 >-613679 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/9/8/2/img/109982.jpg)
34 |
BUTTON CONTROL DE CHAUFFAGE OEM PIAGGIO PORTER, CARGO 2004 > 2017-613678 More informationQuantity required : 4 |
