Vehicle Exploded View - PIAGGIO VU PORTER ESSENCE/GPL/MÉTHANE MAXXI 1000 Porter Maxxi Multitech E6 2015-2019
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

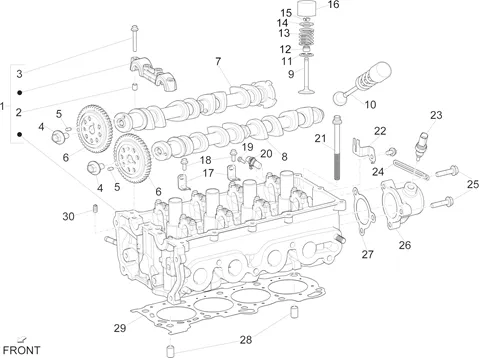

Moteur : 01.08 ENSEMBLE CULASSE - SOUPAPE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/849/Porter_Maxxi_Multitech_E6_2015-2019_01.08.png)
1 |
1A005496 CYLINDER HEAD More informationQuantity required : 1 |
||||||
|
2 |
1A005511 STUD More informationQuantity required : 18 |
||||||
|
3 |
1A005510 SCREW FIX. More informationQuantity required : 21 |
||||||
|
4 |
1A005515 SCREW FIX. More informationQuantity required : 2 |
||||||
|
5 |
1A005516 ROLLER More informationQuantity required : 2 |
||||||
|
6 |
1A005514 SPROCKET More informationQuantity required : 2 |
||||||
|
7 |
1A005512 CAMSHAFT More informationQuantity required : 1 |
||||||
|
8 |
1A005513 CAMSHAFT More informationQuantity required : 1 |
||||||
|
9 |
1A005499 VALVE ASPIRATION More informationQuantity required : 8 |
||||||
|
10 |
1A005500 VALVE EXHAUST More informationQuantity required : 8 |
||||||
|
11 |
1A005502 WASHER D'AR More informationQuantity required : 16 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/4/6/2/3/img/134623.jpg)
12 |
OIL SEAL ETANCHEITE VALVE OEM PIAGGIO PORTER 2015 > 2020, NP6 2021 >-1A005503 More informationQuantity required : 16 |
||||||
|
13 |
1A005501 SPRING VALVE More informationQuantity required : 16 |
||||||
|
14 |
1A005504 WASHER D'AR More informationQuantity required : 16 |
||||||
|
15 |
1A005505 HALF BUSH More informationQuantity required : 32 |
||||||
|
16 |
CM282454 CUVETTE More informationQuantity required : 16 |
||||||
|
16 |
CM282428 - CUVETTE More informationQuantity required : 16 |
||||||
|
16 |
CM282476 - CUVETTE More informationQuantity required : 16 |
||||||
|
16 |
CM282482 - CUVETTE More informationQuantity required : 16 |
||||||
|
16 |
CM282486 - CUVETTE More informationQuantity required : 16 |
||||||
|
16 |
CM282462 CUVETTE More informationQuantity required : 16 |
||||||
|
16 |
CM282458 CUVETTE More informationQuantity required : 16 |
||||||
|
16 |
CM282410 - CUVETTE More informationQuantity required : 16 |
||||||
|
16 |
CM282470 CUVETTE More informationQuantity required : 16 |
||||||
|
16 |
CM282444 CUVETTE More informationQuantity required : 16 |
||||||
|
16 |
CM282424 - CUVETTE More informationQuantity required : 16 |
||||||
|
16 |
CM282436 CUVETTE More informationQuantity required : 16 |
||||||
|
16 |
CM282488 - CUVETTE More informationQuantity required : 16 |
||||||
|
16 |
CM282432 CUVETTE More informationQuantity required : 16 |
||||||
|
16 |
CM282452 CUVETTE More informationQuantity required : 16 |
||||||
|
16 |
CM282420 CUVETTE More informationQuantity required : 16 |
||||||
|
16 |
CM282422 - CUVETTE More informationQuantity required : 16 |
||||||
|
16 |
CM282440 CUVETTE More informationQuantity required : 16 |
||||||
|
16 |
CM282450 CUVETTE More informationQuantity required : 16 |
||||||
|
16 |
CM282472 - CUVETTE More informationQuantity required : 16 |
||||||
|
16 |
CM282412 - CUVETTE More informationQuantity required : 16 |
||||||
|
16 |
CM282426 - CUVETTE More informationQuantity required : 16 |
||||||
|
16 |
CM282468 CUVETTE More informationQuantity required : 16 |
||||||
|
16 |
CM282448 CUVETTE More informationQuantity required : 16 |
||||||
|
16 |
CM282480 - CUVETTE More informationQuantity required : 16 |
||||||
|
16 |
CM282418 - CUVETTE More informationQuantity required : 16 |
||||||
|
16 |
CM282414 - CUVETTE More informationQuantity required : 16 |
||||||
|
16 |
CM282466 CUVETTE More informationQuantity required : 16 |
||||||
|
16 |
CM282484 - CUVETTE More informationQuantity required : 16 |
||||||
|
16 |
CM282446 CUVETTE More informationQuantity required : 16 |
||||||
|
16 |
CM282460 CUVETTE More informationQuantity required : 16 |
||||||
|
16 |
CM282438 CUVETTE More informationQuantity required : 16 |
||||||
|
16 |
CM282464 CUVETTE More informationQuantity required : 16 |
||||||
|
16 |
CM282430 CUVETTE More informationQuantity required : 16 |
||||||
|
16 |
CM282456 CUVETTE More informationQuantity required : 16 |
||||||
|
16 |
CM282442 CUVETTE More informationQuantity required : 16 |
||||||
|
16 |
CM282478 - CUVETTE More informationQuantity required : 16 |
||||||
|
16 |
CM282474 - CUVETTE More informationQuantity required : 16 |
||||||
|
16 |
CM282434 CUVETTE More informationQuantity required : 16 |
||||||
|
16 |
CM282416 - CUVETTE More informationQuantity required : 16 |
||||||
|
17 |
1A005528 PLATE More informationQuantity required : 2 |
||||||
|
18 |
1A005532 SCREW FIX. More informationQuantity required : 2 |
||||||
|
19 |
1A005543 SCREW FIX. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/5/0/6/8/img/135068.jpg)
20 |
SENSOR SHAFT A CAME INTAKE OEM PIAGGIO PORTER MULTITECH E6 2015 > 2020, NP6 2021 >-1A005518 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/4/6/4/6/img/134646.jpg)
21 |
SCREW MOUNTING CYLINDER HEAD OEM PIAGGIO PORTER E 6 2015 >, NP6-1A005489 More informationQuantity required : 10 |
||||||
|
22 |
1A005534 PLATE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/4/8/9/6/img/134896.jpg)
23 |
SENSOR/SONDE TEMPERATURE WATER ON CYLINDER HEAD OEM PIAGGIO PORTER E6 2015 > 2020-1A005522 More informationQuantity required : 1 |
||||||
|
24 |
1A005523 CLAMP More informationQuantity required : 1 |
||||||
|
25 |
1A005482 SCREW FIX. More informationQuantity required : 3 |
||||||
|
26 |
1A005521 FITTING More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/4/6/1/6/img/134616.jpg)
27 |
GASKET OF FITTING WATER OEM PIAGGIO PORTER 2015 > 2020, NP6 2021 >-1A005520 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/4/5/5/4/img/134554.jpg)
28 |
PION DE CENTRAGE CYLINDER HEAD OEM PIAGGIO PORTER MULTITECH 2010 > 2015-1A005477 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/5/0/2/0/img/135020.jpg)
29 |
CYLINDER HEAD GASKET OEM PIAGGIO PORTER E6 2015 > 2020-1A005488 More informationQuantity required : 1 |
||||||
|
30 |
1A005498 SPINDLE More informationQuantity required : 1 |
