Vehicle Exploded View - PIAGGIO VU PORTER ELECTRIQUE 0 Porter Electric Up-Date 2009-EVO 2012-2013
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

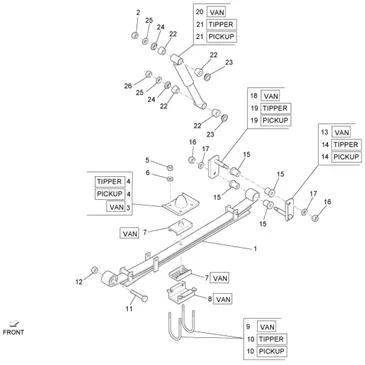

Suspensions - roues : 04.10 SUSPENSION ARRIÈRE - AMORTISSEUR/S
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/346/Porter_Electric_Up-Date_2009-EVO_2012-2013_04.10.PNG)
1 |
SPRING A LAMES OEM PIAGGIO PORTER PICK-UP-B005011 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/3/0/2/img/110302.jpg)
2 |
NUT 12X1. 25 OEM PIAGGIO COMMON A LA RANGE-D9411541200 More informationQuantity required : 2 |
||||||
|
3 |
4834187Z03000 BUFFER More informationQuantity required : 2 |
||||||
|
4 |
4834187Z02000 BUFFER SPRING ARRIER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/1/9/7/img/110197.jpg)
5 |
NUT M10X1. 25 OEM PIAGGIO COMMON A LA RANGE-1E003636 More informationQuantity required : 8 |
||||||
|
6 |
9451101000000 - RONDELLE More informationQuantity required : 4 |
||||||
|
7 |
4837287Z01000 PANEL More informationQuantity required : 4 |
||||||
|
8 |
4837187Z02000 ARRET More informationQuantity required : 2 |
||||||
|
9 |
D9004117087T BOLT More informationQuantity required : 4 |
||||||
|
10 |
9004117081000 BOLT More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/2/5/7/4/img/112574.jpg)
11 |
SCREW TH (12X90) OEM PIAGGIO COMMON A LA RANGE-B007665 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/4/7/5/img/110475.jpg)
12 |
NUT FLANGE (12X1, 25) OEM PIAGGIO COMMON A LA RANGE-264878 More informationQuantity required : 2 |
||||||
|
13 |
4840887Z01000 BRACKET ART. More informationQuantity required : 2 |
||||||
|
14 |
D4840887Z03 PLATE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/2/9/1/0/img/112910.jpg)
15 |
RUBBER MOUNT DE LAME SUSPENSION REAR OEM PIAGGIO PORTER 2020 <-261219 More informationQuantity required : 8 |
||||||
|
16 |
D9411051000 NUT More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/4/7/1/img/110471.jpg)
17 |
RONELLE SHAFT DE TRANSMISSION OEM PIAGGIO PORTER 2020 <-9451201000000 More informationQuantity required : 8 |
||||||
|
18 |
4804187Z01000 BRACKET ART. More informationQuantity required : 2 |
||||||
|
19 |
D4804187Z02 PLATE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/0/9/1/9/img/120919.jpg)
20 |
REAR SHOCK ABSORBER OEM PIAGGIO PORTER VAN 2020 <-56599R More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/7/6/6/3/img/207663.jpg)
21 |
REAR SHOCK ABSORBER OEM PIAGGIO PORTER 1998 > 2020-1E002834 More informationQuantity required : 2 |
||||||
|
21 |
REAR SHOCK ABSORBER OEM PIAGGIO PORTER 1998 > 2020-1E002834 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/3/5/8/4/img/113584.jpg)
22 |
RUBBER MOUNT SHOCK ABSORBER OEM PIAGGIO PORTER 2020 <-B004981 More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/7/0/3/img/110703.jpg)
23 |
WASHER PLATE REAR SHOCK ABSORBER OEM PIAGGIO PORTER 2020 <-D9004209144 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/3/3/1/img/110331.jpg)
24 |
WASHER REAR SHOCK ABSORBER OEM PIAGGIO PORTER 2020 <-D9004209143 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/2/2/8/img/110228.jpg)
25 |
WASHER GROWER D12 OEM PIAGGIO COMMON A LA RANGE-D9451101200 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/4/0/9/img/111409.jpg)
26 |
NUT REAR SHOCK ABSORBER OEM PIAGGIO PORTER 2020 <-D9004170152 More informationQuantity required : 2 |
