Vehicle Exploded View - PIAGGIO VU PORTER ELECTRIQUE 0 Porter Electric Up-Date 2009-EVO 2012-2013
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

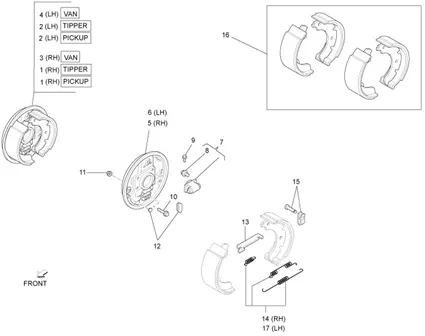

Instalation du freins - transmisisons : 05.02 MÂCHOIRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/346/Porter_Electric_Up-Date_2009-EVO_2012-2013_05.02.PNG)
1 |
837141 BRAKE DRO. More informationQuantity required : 1 |
||||||
|
2 |
837142 BRAKE GAU. More informationQuantity required : 1 |
||||||
|
3 |
1R000276 BRAKE REAR D. More informationQuantity required : 1 |
||||||
|
4 |
1R000277 BRAKE GAU. More informationQuantity required : 1 |
||||||
|
5 |
RIGHT REAR BRAKE ASSY "PIAGGIO GENUINE PART" PORTER -4703087Z02000- More informationQuantity required : 1 |
||||||
|
6 |
LEFT REAR BRAKE ASSY "PIAGGIO GENUINE PART" PORTER -4704087Z02000- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/0/7/7/4/img/120774.jpg)
7 |
CYLINDER DE REAR WHEEL OEM PIAGGIO PORTER STANDARD 1995 > 2009-4755087Z01000 More informationQuantity required : 1 |
||||||
|
8 |
4468187Z01000 SCREW More informationQuantity required : 2 |
||||||
|
9 |
CYLINDER DE REAR WHEEL OEM PIAGGIO PORTER STANDARD 1995 > 2009-4755087Z01000 More informationQuantity required : 2 |
||||||
|
10 |
9004101608000 SCREW More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/0/8/9/img/111089.jpg)
11 |
NUT BRAKE SHOE SET REAR OEM PIAGGIO PORTER 2020 <-837138 More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/4/7/0/2/img/114702.jpg)
12 |
KIT CAPUCHON BRAKE REAR OEM PIAGGIO PORTER UP-DATE 2009 > 2010-837136 More informationQuantity required : 2 |
||||||
|
13 |
4761387Z01000 FRAME More informationQuantity required : 2 |
||||||
|
14 |
0251987Z01000 KIT SPRING * More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/5/8/5/1/img/115851.jpg)
15 |
PLATE DE MAINTIENT MACHOIRES OF BRAKE OEM PIAGGIO PORTER-4744687Z01000 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/2/7/8/8/img/122788.jpg)
16 |
KIT MACHOIRES OF BRAKE REAR (RATTRAPAGE MANUEL) OEM PIAGGIO PORTER PIK-UP, VAN 2009 <-850668 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/6/6/6/6/img/116666.jpg)
17 |
KIT SPRING BRAKE SHOE SET OEM PIAGGIO PORTER DIESEL-0287487Z01000 More informationQuantity required : 1 |
