Vehicle Exploded View - PIAGGIO VU PORTER ELECTRIQUE 0 Porter Electric Up-Date 2009-EVO 2012-2013
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

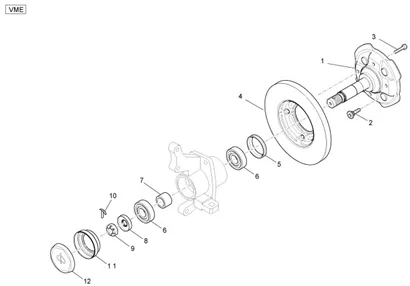

Suspensions - roues : 04.08 MOYEU DE LA ROUE AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/346/Porter_Electric_Up-Date_2009-EVO_2012-2013_04.08.PNG)
1 |
6444184 FLANGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/8/4/2/3/img/158423.jpg)
2 |
SCREW ESSIEU FRONT OEM PIAGGIO PORTER 2020 <-9004912030 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/4/9/1/6/img/114916.jpg)
3 |
SCREW HUB ESSIEU FRONT OEM PIAGGIO PORTER 2020 <-9004119520000 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/2/0/8/8/img/122088.jpg)
4 |
BRAKE DISC FRONT OEM PIAGGIO PORTER < 2020-4351287Z02000 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/6/4/8/6/img/116486.jpg)
5 |
GASKET HUB DE FRONT WHEEL OEM PIAGGIO PORTER 2020 <-9004311202000 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/8/6/6/4/img/158664.jpg)
6 |
BEARING (25X62X17) HUB DE FRONT WHEEL OEM PIAGGIO PORTER, CARGO-D90043632426 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/6/6/7/9/img/116679.jpg)
7 |
SPACER BEARING HUB FRONT OEM PIAGGIO PORTER, CARGO-9004389068000 More informationQuantity required : 2 |
||||||
|
8 |
611925 HUB More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/3/4/2/3/img/113423.jpg)
9 |
NUT MOUNTING TRANSMISSION FRONT OEM PIAGGIO PORTER-D9004171053 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/4/5/6/img/110456.jpg)
10 |
AGRAFE/GOUPILLE DE SECURITE HUB DE FRONT WHEEL OEM PIAGGIO PORTER 1998 > 2020-D9004252016 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/7/2/8/3/img/117283.jpg)
11 |
BUSH/GASKET D'ETANCHEITE SHAFT DE FRONT WHEEL OEM PIAGGIO PORTER-9004311201000 More informationQuantity required : 1 |
||||||
|
12 |
658485 ENJOLIVEUR More informationQuantity required : 1 |
