Vehicle Exploded View - PIAGGIO VU PORTER ELECTRIQUE 0 Porter Electric Up-Date 2009-EVO 2012-2013
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

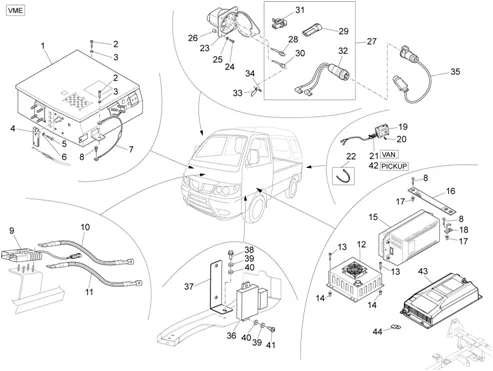

Installation électrique : 06.13 DISPOSITIFS ÉLECTRIQUES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/346/Porter_Electric_Up-Date_2009-EVO_2012-2013_06.13.PNG)
1 |
B005317 - DRIVER More informationQuantity required : 1 |
||||||
|
1 |
B007609 BOX GUIDE More informationQuantity required : 1 |
||||||
|
1 |
1D002107 BOX DRIVER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/8/3/img/65383.jpg)
2 |
SCREW CRUCIFORME (5X12) OEM PIAGGIO COMMON A TOUTE LA RANGE-015585 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/0/2/img/63802.jpg)
3 |
WASHER PLATE (5. 2X15X1) OEM PIAGGIO COMMON A LA RANGE-006078 More informationQuantity required : 2 |
||||||
|
4 |
612671 LEVA ACCELERAT More informationQuantity required : 1 |
||||||
|
5 |
SCREW TH (5X14) OEM PIAGGIO COMMON A LA RANGE-031057 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/7/img/63777.jpg)
6 |
WASHER PLATE (6X12X1) OEM PIAGGIO COMMON A LA RANGE-003056 More informationQuantity required : 2 |
||||||
|
7 |
612894 CAVETTO More informationQuantity required : 1 |
||||||
|
8 |
CM287320 SCREW More informationQuantity required : 4 |
||||||
|
9 |
612683 PRESA More informationQuantity required : 1 |
||||||
|
10 |
B005515 CABLE BATTERY More informationQuantity required : 1 |
||||||
|
11 |
612666 CABLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/4/2/1/8/img/124218.jpg)
12 |
CONVERTISSEUR OEM PIAGGIO PORTER ELECTRIC-6120276 More informationQuantity required : 1 |
||||||
|
13 |
SCREW BTR (6X30) OEM PIAGGIO COMMON A LA RANGE-122637 More informationQuantity required : 4 |
||||||
|
14 |
612051 (*) INSERTO WE More informationQuantity required : 4 |
||||||
|
15 |
MAIN BATTERY CHARGER "PIAGGIO GENUINE PART" PIAGGIO PORTER -612026 More informationQuantity required : 1 |
||||||
|
15 |
BATTERY CHARGER AUXILIAIRE OEM PIAGGIO PORTER-612673 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/7/2/1/4/img/117214.jpg)
16 |
ELASTIC MOUNTING CHARGEUR OEM PIAGGIO PORTER ELECTRIC 2009 >-612386 More informationQuantity required : 1 |
||||||
|
17 |
612050 (*) INSERTO JA More informationQuantity required : 7 |
||||||
|
18 |
612377 (*) GANCIO X E More informationQuantity required : 1 |
||||||
|
19 |
1D001709 BUZZER ELK More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/5/img/66035.jpg)
20 |
SCREW AUTOTARAUDEUSE (4, 2X13) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-259349 More informationQuantity required : 4 |
||||||
|
21 |
612439 (*) BRIGLIA BU More informationQuantity required : 1 |
||||||
|
22 |
645437 CLAMP More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/1/7/4/9/img/121749.jpg)
23 |
BRACKET DE PRISE DE RECHARGE OEM PIAGGIO PORTER ELECTRIC 612678 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/3/9/img/65439.jpg)
24 |
SCREW CRUCIFORME (4X20) OEM PIAGGIO COMMON A LA RANGE-018544 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/2/5/img/65425.jpg)
25 |
WASHER PLATE (4. 5X12X1) OEM PIAGGIO COMMON A LA RANGE-016670 More informationQuantity required : 4 |
||||||
|
26 |
218592 NUT More informationQuantity required : 4 |
||||||
|
27 |
B023654 RECHARGE DE LA BATTERY More informationQuantity required : 1 |
||||||
|
27 |
KIT PRISE DE RACCORDEMENT OEM PIAGGIO PORTER ELECTRIC-645844 More informationQuantity required : 1 |
||||||
|
28 |
612645 CONTACTEUR More informationQuantity required : 1 |
||||||
|
29 |
612646 SCREW 1/38360/14 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/9/3/7/4/img/119374.jpg)
30 |
BUTTON/INTERRUPTEUR PRISE DE RECHARGE OEM PIAGGIO PORTER ELECTRIC-612430 More informationQuantity required : 1 |
||||||
|
31 |
Connecteur |
||||||
|
32 |
645841 SPINA PRESA DI CORRENTE More informationQuantity required : 1 |
||||||
|
32 |
1D001911 PUISSANCE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/3/5/4/2/img/113542.jpg)
33 |
BANDE ACTIVATION OEM PIAGGIO PORTER ELECTRIC 2002 > 2020-6126816 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/5/4/img/63854.jpg)
34 |
SCREW PARKER CRUCIFORME (3, 5X9, 5) OEM PIAGGIO COMMON A LA RANGE-008432 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/2/5/8/3/img/122583.jpg)
35 |
CABLE DE RECHARGE OEM PIAGGIO PORTER ELECTRIC 2020 <-612031 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/1/9/6/3/img/121963.jpg)
36 |
DATA ACQUISITION ELECTRONIC CARD "PIAGGIO GENUINE PART" PORTER ELECTRIC - TILL OCTOBER 2010 -B005318 More informationQuantity required : 1 |
||||||
|
36 |
B007651 IL FICHE ELECTRONIC More informationQuantity required : 1 |
||||||
|
37 |
B005698 BRACKET GAU. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/0/img/65640.jpg)
38 |
SCREW TH (6X18) OEM PIAGGIO COMMUNA LA RANGE-031089 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/2/img/65362.jpg)
39 |
WASHER PLATE (6. 4X13X1. 5) OEM PIAGGIO COMMON A LA RANGE-013777 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/6/img/65416.jpg)
40 |
WASHER ELASTIC (6, 4X11, 8X1) OEM PIAGGIO COMMON A LA RANGE-016406 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/8/0/img/65380.jpg)
41 |
SCREW TFR (6X15) OEM PIAGGIO COMMON A LA RANGE-015558 More informationQuantity required : 2 |
||||||
|
42 |
B005514 CABLE BUZZER More informationQuantity required : 1 |
||||||
|
43 |
CHARGE BATTERY PRINCIPAL NG3 OEM PIAGGIO PORTER ELECTRIC-B023650 More informationQuantity required : 1 |
||||||
|
44 |
B025046 BRACKET FRONT CHARGEUR More informationQuantity required : 1 |
