Vehicle Exploded View - PIAGGIO VU PORTER ELECTRIQUE 0 Porter Electric Up-Date 2009-EVO 2012-2013
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

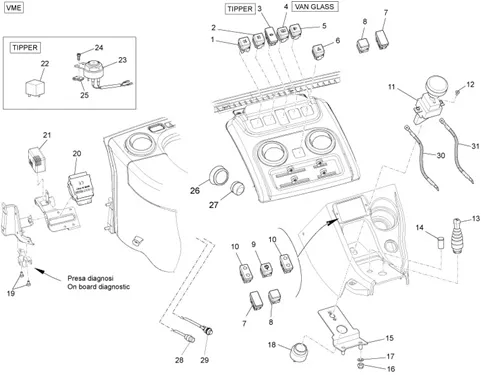

Installation électrique : 06.01 INVERSEURS - COMMUTATEURS - BOUTONS - INTERRUPTEURS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/346/Porter_Electric_Up-Date_2009-EVO_2012-2013_06.01.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/5/7/3/3/img/115733.jpg)
1 |
BUTTON/INTERRUPTEUR LAMP DE BROUILLARD REAR OEM PIAGGIO PORTER 2009 > 2020-B007883 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/7/0/5/1/img/117051.jpg)
2 |
BUTTON/INTERRUPTEUR LAMP DE BROUILLARD OEM PIAGGIO PORTER 2009 > 2020-B007882 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/3/8/0/4/img/173804.jpg)
3 |
BUTTON/INTERRUPTEUR/CONTACTEUR DE BENNE (5 FICHES) OEM PIAGGIO PORTER 2010 > 2020/NP6 2021 >-1D003621 More informationQuantity required : 1 |
||||||
|
3 |
BUTTON/INTERRUPTEUR/CONTACTEUR DE BENNE (5 FICHES) OEM PIAGGIO PORTER 2010 > 2020/NP6 2021 >-1D003621 More informationQuantity required : 1 |
||||||
4 |
B007887 INTERRUPTEUR DEGIVRAGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/5/2/0/5/img/115205.jpg)
5 |
BUTTON/INTERRUPTEUR REGLAGE HEADLAMP OEM PIAGGIO PORTER-B007884 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/7/3/3/6/img/117336.jpg)
6 |
BUTTON/INTERRUPTEUR LAMP DE DETRESSE/WARNING OEM PIAGGIO PORTER-B007881 More informationQuantity required : 1 |
||||||
|
7 |
B004723 CAP More informationQuantity required : 1 |
||||||
|
8 |
B004278 CAP More informationQuantity required : 2 |
||||||
|
9 |
B007888 INTERRUPTEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/5/4/8/5/img/115485.jpg)
10 |
BUTTON/INTERRUPTEUR LEVE VITRE OEM PIAGGIO PORTER MULTITECH E4 2010 >-B007889 More informationQuantity required : 2 |
||||||
|
11 |
612035 (*) TASTO DI E More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/1/6/9/img/127169.jpg)
12 |
SCREW BTR HEAD FRAISEE (5X10) BOX OF SPEED OEM PIAGGIO GILERA 50 SMT, RCR/DERBI 50 SENDA 2010 >/APRILIA 50 SX, RX, RS-1A003116 More informationQuantity required : 2 |
||||||
|
13 |
JOYSTIC OEM PIAGGIO PORTER ELECTRIC 2002 > 2020-B005321 More informationQuantity required : 1 |
||||||
|
14 |
612899 SPIA More informationQuantity required : 1 |
||||||
|
15 |
B005512 BRACKET More informationQuantity required : 1 |
||||||
|
16 |
002418 NUT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/9/img/63779.jpg)
17 |
WASHER PLATE (8, 4X15X1, 5) OEM PIAGGIO COMMON A LA RANGE-003058 More informationQuantity required : 2 |
||||||
|
18 |
612663 SEGNALATORE AC More informationQuantity required : 1 |
||||||
|
19 |
SCREW CRUCIFORME (5X10) OEM PIAGGIO COMMON A LA RANGE-1A003111 More informationQuantity required : 2 |
||||||
|
19 |
SCREW CRUCIFORME (5X10) OEM PIAGGIO COMMON A LA RANGE-1A003111 More informationQuantity required : 2 |
||||||
|
20 |
B004880 DOOR FUSIBLE More informationQuantity required : 1 |
||||||
|
21 |
8665087214000 BUZZER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/9/2/8/1/img/119281.jpg)
22 |
CENTRE CLIGNOTANTE/BRUITEUR DE BENNE OEM PIAGGIO PORTER-615392 More informationQuantity required : 1 |
||||||
|
23 |
B004817 - BEEP-BEEP CLIGNOTEUR More informationQuantity required : 1 |
||||||
|
24 |
009000-SCREW S00900000 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/4/img/72924.jpg)
25 |
NUT SHEET METAL (4. 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017408 More informationQuantity required : 2 |
||||||
|
26 |
612904 - COMANDO RISCAL More informationQuantity required : 1 |
||||||
|
27 |
612905 MANOPOLA RISCA More informationQuantity required : 1 |
||||||
|
28 |
644273 FUSIBILE More informationQuantity required : 1 |
||||||
|
29 |
612659 PULSANTE More informationQuantity required : 1 |
||||||
|
30 |
B005307 CABLE BATTERY More informationQuantity required : 1 |
||||||
|
31 |
612638 CABLE More informationQuantity required : 1 |
