Vehicle Exploded View - PIAGGIO VU PORTER ELECTRIQUE 0 Porter Electric Up-Date 2009-EVO 2012-2013
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

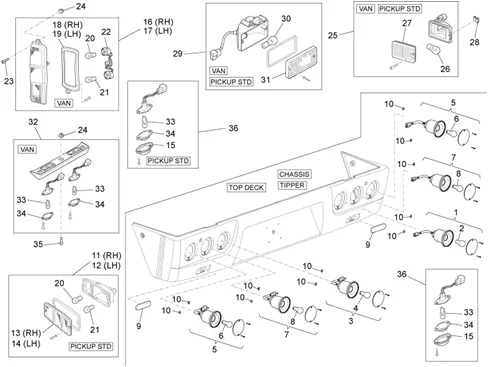

Installation électrique : 06.04 ECLAIRAGES ARRIÈRE - CLIGNOTANTS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/346/Porter_Electric_Up-Date_2009-EVO_2012-2013_06.04.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/5/2/7/6/img/115276.jpg)
1 |
LAMP DE RECUL OEM PIAGGIO PORTER PICK-UP-613820 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/5/8/img/65758.jpg)
2 |
AMPOULE/LAMPE 12V 21W BA15S/R10 OEM PIAGGIO COMMON A LA RANGE-160654 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/7/1/0/0/img/117100.jpg)
3 |
LAMP UNIT/HEADLAMP/HEADLAMP ANTIBROUILLARD OEM PIAGGIO PORTER PICK-UP-B000970 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/5/3/0/img/111530.jpg)
4 |
AMPOULE/LAMPE 12V 21W BAW15S/PR21W OEM PIAGGIO COMMON A LA RANGE-B004243 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/6/4/7/5/img/116475.jpg)
5 |
LAMP STOP REAR OEM PIAGGIO PORTER E4-E6 2010 >-B000968 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/8/9/7/img/67897.jpg)
6 |
AMPOULE/LAMPE 12V 21/5W BAY15D/P21/5 RED OEM PIAGGIO COMMON A LA RANGE-640753 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/5/2/3/0/img/115230.jpg)
7 |
REAR RIGHT INDICATOR OU LEFT OEM PIAGGIO PORTER PICK-UP-B000969 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/3/3/6/9/img/113369.jpg)
8 |
AMPOULE/LAMPE 12V 21W BA15S ORANGE OEM PIAGGIO COMMON A LA RANGE-584004 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/5/3/img/67253.jpg)
9 |
CATADIOPTRE REAR OEM PIAGGIO COMMON A TOUTE LA RANGE-58233R5 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/3/5/0/img/111350.jpg)
10 |
NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017401 More informationQuantity required : 12 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/8/3/3/7/img/108337.jpg)
11 |
LAMP REAR RIGHT OEM PIAGGIO PORTER PICK-UP-8155087Z01000 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/8/7/1/0/img/118710.jpg)
12 |
LAMP REAR LEFT OEM PIAGGIO PORTER PICK-UP-8156087Z01000 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/4/4/3/4/img/114434.jpg)
13 |
CABOCHON LAMP REAR RIGHT OEM PIAGGIO PORTER PLATEAU A RIDELLES-8155187Z01000 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/4/4/3/1/img/114431.jpg)
14 |
CABOCHON LAMP REAR LEFT OEM PIAGGIO PORTER PICK-UP 2020 <-8156187Z01000 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/2/0/7/2/img/112072.jpg)
15 |
COVER ECLAIRAGE DE PLATE OEM PIAGGIO PORTER 1992 > 2018, CARGO 2007 > 2017-8127887Z01000 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/0/4/8/6/img/120486.jpg)
16 |
LAMP REAR RIGHT OEM PIAGGIO PORTER VAN-8155087Z02000 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/9/3/9/7/img/119397.jpg)
17 |
LAMP REAR LEFT OEM PIAGGIO PORTER VAN-8156087Z02000 More informationQuantity required : 1 |
||||||
18 |
8155487Z03000 - JOINT More informationQuantity required : 1 |
||||||
|
19 |
8156487Z01000 - JOINT More informationQuantity required : 1 |
||||||
|
20 |
AMPOULE/LAMPE 12V 21W BA15S/R10 OEM PIAGGIO COMMON A LA RANGE-160654 More informationQuantity required : 1 |
||||||
|
21 |
9913221210000 - AMPOULE More informationQuantity required : 1 |
||||||
|
22 |
8175587Z02000 - PORTE-AMPOULE More informationQuantity required : 1 |
||||||
|
23 |
D9351055030 SCREW More informationQuantity required : 2 |
||||||
|
24 |
9004189023000 - TAMPON More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/7/8/6/6/img/117866.jpg)
25 |
LAMP DE RECUL OEM PIAGGIO PORTER 2020 <-8167087Z010006 More informationQuantity required : 1 |
||||||
|
26 |
AMPOULE/LAMPE 12V 21W BA15S/R10 OEM PIAGGIO COMMON A LA RANGE-160654 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/4/6/6/3/img/114663.jpg)
27 |
CABOCHON DE LAMP TRANSPARENT OEM PIAGGIO PORTER 1998-2020-8167187Z01000 More informationQuantity required : 1 |
||||||
|
28 |
9004183050000 NUT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/8/9/1/3/img/118913.jpg)
29 |
LAMP REAR ANTI-BROUILLARD OEM PIAGGIO PORTER 2020 <-8157087Z01000 More informationQuantity required : 1 |
||||||
|
30 |
AMPOULE/LAMPE 12V 21W BA15S/R10 OEM PIAGGIO COMMON A LA RANGE-160654 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/6/4/0/1/img/116401.jpg)
31 |
CABOCHON DE LAMP OEM PIAGGIO PORTER 2020 <-8121187Z01000 More informationQuantity required : 1 |
||||||
|
32 |
8127087Z02000 LAMP PLATE More informationQuantity required : 1 |
||||||
|
33 |
|
||||||
|
34 |
8127187Z01000 TRANSPARENT More informationQuantity required : 1 |
||||||
|
35 |
9356715016000 SCREW More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/0/3/img/73403.jpg)
36 |
LAMP ECLAIRAGE DE PLATE DE POLICE OEM PIAGGIO 250-300-400-500 MP3, PORTER, CARGO-D8127087Z01 More informationQuantity required : 2 |
