Vehicle Exploded View - PIAGGIO VU PORTER ELECTRIQUE 0 Porter Electric Up-Date 2009-EVO 2012-2013
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

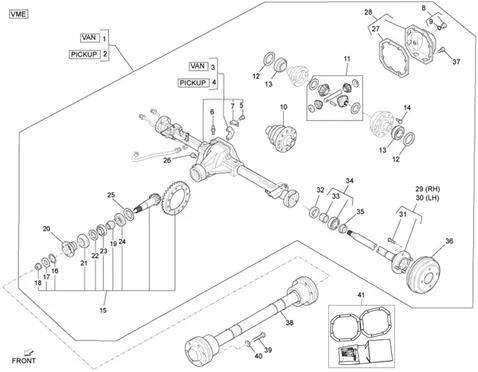

Moteur : 01.28 TRANSMISSION ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/346/Porter_Electric_Up-Date_2009-EVO_2012-2013_01.28.PNG)
1 |
1E001744 - AXE ARRIER More informationQuantity required : 1 |
||||||
|
2 |
1E001928 - AXE ARRIER More informationQuantity required : 1 |
||||||
|
3 |
837103 BODY ESSIEU More informationQuantity required : 1 |
||||||
|
4 |
837139 - CORPS ESSIEU More informationQuantity required : 1 |
||||||
|
5 |
9004101607000 BOLT More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/5/5/0/6/img/115506.jpg)
6 |
SCREW OF PURGE/RENIFLARD PONT REAR OEM PIAGGIO PORTER 2020 <-9004915043000 More informationQuantity required : 1 |
||||||
|
7 |
BOUCHON |
||||||
|
8 |
493434 - BOUCHON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/6/8/5/img/111685.jpg)
9 |
GASKET OF CAP DE PONT REAR OEM PIAGGIO PORTER 2002 > 2020-493435 More informationQuantity required : 8 |
||||||
|
10 |
262931 DIFFERENTIEL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/3/7/6/5/img/123765.jpg)
11 |
KIT GEAR TRANSMISSION REAR OEM PIAGGIO PORTER 1995 > 2020-0441387Z01000 More informationQuantity required : 1 |
||||||
|
12 |
ENTRETOISE 5,50 |
||||||
|
12 |
ENTRETOISE 5,60 |
||||||
|
12 |
ENTRETOISE 5,70 |
||||||
|
12 |
ENTRETOISE 5,80 |
||||||
|
12 |
CALE (5. 1) DE TRANSMISSION REAR OEM PIAGGIO PORTER 2020 <-9004564518000 More informationQuantity required : 2 |
||||||
|
12 |
9004564519000 SPACER More informationQuantity required : 2 |
||||||
|
12 |
9004564520000 EPAISSEUR More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/7/7/8/3/img/117783.jpg)
12 |
SPACER OF DIFFERENTIEL (5, 4 MM) OEM PIAGGIO PORTER-9004564521000 More informationQuantity required : 2 |
||||||
|
12 |
9004564526000 SPACER More informationQuantity required : 2 |
||||||
|
12 |
9004564527000 SPACER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/1/2/6/5/img/121265.jpg)
13 |
BEARING HOUSING DIFFERENCIEL REAR OEM PIAGGIO PORTER 2020 <-9004366066000 More informationQuantity required : 2 |
||||||
|
14 |
9004109212000 BOLT More informationQuantity required : 10 |
||||||
|
15 |
837111 SET COUPLE CONICAL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/9/4/1/img/111941.jpg)
16 |
O-RING SHAFT DE TRANSMISSION OEM PIAGGIO PORTER STANDARD 2020 <-9004301252000 More informationQuantity required : 1 |
||||||
|
17 |
BUTEE |
||||||
|
18 |
NUT (18X1. 5) DE COUPLE CONIQUE TRANSMISSION OEM PIAGGIO PORTER 2020 <-9004178044000 More informationQuantity required : 1 |
||||||
|
19 |
SPACER DE COUPLE CONIQUE TRANSMISSION OEM PIAGGIO PORTER 2020 <-4123187Z01000 More informationQuantity required : 1 |
||||||
|
20 |
837122 FLANGE 147033 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/4/6/9/4/img/114694.jpg)
21 |
PROTECTOR POUSSIERE DE COUPLE CONIQUE TRANSMISSION OEM PIAGGIO PORTER 2020 <-4125287Z01000 More informationQuantity required : 1 |
||||||
|
22 |
CIRCLIPS |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/0/9/2/3/img/120923.jpg)
23 |
BEARING (25X62X18. 25) A ROULEAUX CONIQUES SHAFT DE COUPLE OEM PIAGGIO PORTER STANDARD 2020 <-9004366065000 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/1/3/4/5/img/121345.jpg)
24 |
BEARING (30X72X20. 75) CONIQUE SHAFT DE COUPLE OEM PIAGGIO PORTER 2020 <-9004366067000 More informationQuantity required : 1 |
||||||
|
25 |
9004564514000 EPAISSEUR More informationQuantity required : 1 |
||||||
|
25 |
ENTRETOISE 2,50 |
||||||
|
25 |
ENTRETOISE 2,60 |
||||||
|
25 |
ENTRETOISE 2,70 |
||||||
|
25 |
ENTRETOISE 2,80 |
||||||
|
25 |
ENTRETOISE 2,90 |
||||||
|
25 |
ENTRETOISE 3,20 |
||||||
|
25 |
ENTRETOISE 3,30 |
||||||
|
25 |
ENTRETOISE 3,40 |
||||||
|
25 |
SPACER OF COUPLE CONIQUE TRANSMISSION OEM PIAGGIO PORTER 2020 <-9004564513000 More informationQuantity required : 1 |
||||||
|
26 |
9004341070000 CAP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/5/4/4/4/img/115444.jpg)
27 |
4218187Z01000 GASKET More informationQuantity required : 1 |
||||||
|
28 |
4213487Z01000 COVER More informationQuantity required : 1 |
||||||
|
29 |
837128 SPINDLE More informationQuantity required : 1 |
||||||
|
30 |
837127 SPINDLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/3/3/0/0/img/113300.jpg)
31 |
BOLT DE HUB REAR OEM PIAGGIO PORTER 2020-9004912054000 More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/5/6/1/7/img/115617.jpg)
32 |
OIL SEAL (40X60X10) SHAFT DE TRANSMISSION OEM PIAGGIO PORTER UP-DATE 2009 > 2010-493401 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/8/7/5/2/img/118752.jpg)
33 |
SPACER DE BEARING WHEEL SPINDLE REAR OEM PIAGGIO PORTER 1992 > 2009-4242387Z01000 More informationQuantity required : 2 |
||||||
|
34 |
493400 KIT COUSSINET More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/6/7/1/7/img/116717.jpg)
35 |
SPACER SHAFT DE REAR WHEEL OEM PIAGGIO PORTER 2020 <-4232987Z01000 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/2/2/2/3/img/122223.jpg)
36 |
TAMBOUR OF BRAKE REAR OEM PIAGGIO PORTER STANDARD 1995 > 2020-4243187Z03000 More informationQuantity required : 2 |
||||||
|
37 |
9004101609000 BOLT More informationQuantity required : 8 |
||||||
|
38 |
611799 (*) ALBERO TRA More informationQuantity required : 1 |
||||||
|
39 |
615800 SCREW More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/9/1/img/68491.jpg)
40 |
WASHER ELASTIC COURBE (8. 4X15X0. 8) OEM PIAGGIO COMMON A TOUTE LA RANGE-709047 More informationQuantity required : 6 |
||||||
|
41 |
850667 KIT EXAMEN SPINDLE REAR * More informationQuantity required : 1 |
