Vehicle Exploded View - APRILIA NA MANA 850 NA 850 Mana 2007-2011
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

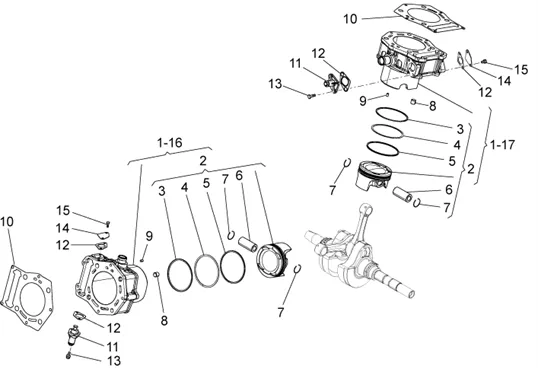

Moteur : 29.38 CYLINDRE AV.PISTON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/746/NA_850_Mana_2007-2011_29.38.PNG)
1 |
874989 - CYLINDRE More informationQuantity required : 2 |
||||||
|
2 |
8749880002 - GR.PISTON More informationQuantity required : 2 |
||||||
|
2 |
8749880003 - GR.PISTON More informationQuantity required : 2 |
||||||
|
2 |
8749880004 - GR.PISTON More informationQuantity required : 2 |
||||||
|
2 |
B0148020001-GR. PISTON 1 More informationQuantity required : 2 |
||||||
|
2 |
B0148020002-GR. PISTON 2 More informationQuantity required : 2 |
||||||
|
2 |
B0148020003-GR. PISTON 3 More informationQuantity required : 2 |
||||||
|
2 |
B0148020004 - GR.PISTON 4 More informationQuantity required : 2 |
||||||
|
2 |
874989 - CYLINDRE More informationQuantity required : 2 |
||||||
|
3 |
844941 - SEGMENT More informationQuantity required : 2 |
||||||
|
4 |
844942 - SEGMENT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/3/3/6/img/69336.jpg)
5 |
PISTON RING RACLEUR D'HUILE OEM PIAGGIO GILERA 800 GP/APRILIA 850 SRV, MANA-844943 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/9/8/img/68698.jpg)
6 |
SHAFT OF PISTON (D22) OEM PIAGGIO 500-530 MP3-827820 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/2/9/img/68729.jpg)
7 |
CIRCLIPS DE PISTON OEM PIAGGIO 500 MP3 2007 >-828116 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/5/2/img/68552.jpg)
8 |
STUD CALIBRE 11. 8X10 OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA/MOTO-GUZZI ET LES MAXI SCOOTER 400-500 CC-825597 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/6/9/img/66669.jpg)
9 |
BUSH DE CENTRAGE (5X8) OEM PIAGGIO COMMON A LA RANGE-484993 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/5/3/img/68953.jpg)
10 |
CYLINDER HEAD GASKET OEM PIAGGIO GILERA 800 GP 2007 >/APRILIA 850 SRV 2012 >, MANA 2008 >-831203 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/6/1/6/img/178616.jpg)
11 |
TENDEUR DE CHAIN TIMING OEM PIAGGIO COMMON A LA RANGE-1A019253 More informationQuantity required : 2 |
||||||
|
11 |
TENDEUR DE CHAIN TIMING OEM PIAGGIO COMMON A LA RANGE-1A019253 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/4/6/img/69546.jpg)
12 |
GASKET OF TENDEUR CHAIN DE TIMING OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-847928 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/3/img/72723.jpg)
13 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-B016777 More informationQuantity required : 4 |
||||||
|
13 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-B016777 More informationQuantity required : 4 |
||||||
|
14 |
840135-PLATE CIL. More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/0/6/img/72706.jpg)
15 |
SCREW FLANGE TH (6X14) OEM PIAGGIO COMMON A LA RANGE-B016426 More informationQuantity required : 4 |
||||||
|
16 |
B016146 - GROUPE CYLINDRE-PISTON-AXE More informationQuantity required : 1 |
||||||
|
17 |
B016145 - GROUPE CYLINDRE-PISTON-AXE More informationQuantity required : 1 |
