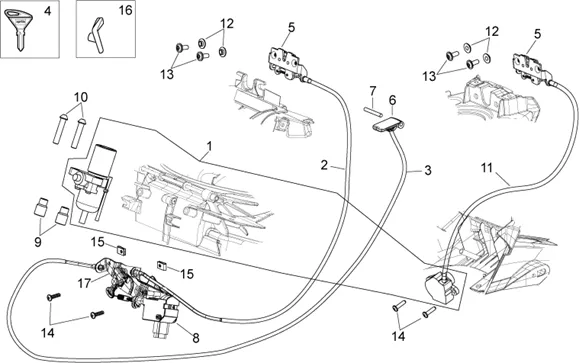

Chassis : 28.29 KIT SERRURE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/746/NA_850_Mana_2007-2011_28.29.PNG)
1 |
859808 - KIT SERRURE AVEC CLE More informationQuantity required : 1 |
||||||
|
2 |
852399-TRANSMISSION More informationQuantity required : 1 |
||||||
|
3 |
852400 - CABLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/2/2/7/4/img/62274.jpg)
4 |
EBAUCHE DE CLE OEM PIAGGIO APRILIA 750 SHIVER 2007 >, 900 SHIVER 2017 >, 750 DORSODURO 2008 >, 900 DORSODURO 2017 >, 1200 DORSODURO 2010 >, 1100 RSV-4 2019 >, 650 PEGASO, 850 MANA-B044413 More informationQuantity required : 1 |
||||||
|
5 |
AP8102945-LOCK SEAT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/6/7/img/67167.jpg)
6 |
LEVER DE UNDERSEAT COMPARTMENT OEM PIAGGIO COMMON A LA RANGE-577861 More informationQuantity required : 1 |
||||||
|
7 |
575062-SPINDLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/0/7/0/img/178070.jpg)
8 |
ENGINE OUVERTURE SEAT OEM PIAGGIO COMMON A LA RANGE-1D002276R More informationQuantity required : 1 |
||||||
|
8 |
ENGINE OUVERTURE SEAT OEM PIAGGIO COMMON A LA RANGE-1D002276R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/8/4/img/71484.jpg)
9 |
SPACER (8X12X26) OEM PIAGGIO COMMON A LA RANGE-AP8121773 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/6/7/img/71867.jpg)
10 |
SCREW A ARRACHEMENT/AUTO-CASSANTE BTR (8X40) OEM PIAGGIO COMMON A LA RANGE-AP8150351 More informationQuantity required : 2 |
||||||
|
11 |
851944-CABLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/2/9/img/71429.jpg)
12 |
BUSH/SPACER (6) OEM PIAGGIO COMMON A LA RANGE-AP8121032 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/3/img/71933.jpg)
13 |
SCREW FLANGE BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152246 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/0/img/71970.jpg)
14 |
SCREW PARKER (5X20) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-AP8152329 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/8/7/4/img/50874.jpg)
15 |
SCREW PARKER (5, 5X15, 9) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-AP8150426 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/4/9/img/67149.jpg)
16 |
LEVER DE LOCK OEM PIAGGIO COMMON A LA RANGE-577129 More informationQuantity required : 1 |
||||||
|
17 |
577130-PLATE More informationQuantity required : 1 |
