Vehicle Exploded View - APRILIA NA MANA 850 NA 850 Mana 2007-2011
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

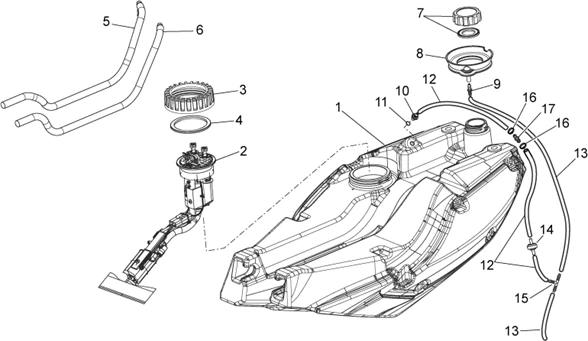

Chassis : 28.11 RÉSERVOIR ESSENCE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/746/NA_850_Mana_2007-2011_28.11.PNG)
1 |
B044489-FUEL TANK More informationQuantity required : 1 |
||||||
|
1 |
B044492 - RESERVOIR ESSENCE More informationQuantity required : 1 |
||||||
|
2 |
B044348 - POMPE ESSENCE More informationQuantity required : 1 |
||||||
|
2 |
851913 - POMPE ESSENCE CPL. More informationQuantity required : 1 |
||||||
|
3 |
AP8158359-BUSH More informationQuantity required : 1 |
||||||
|
4 |
854937-GASKET More informationQuantity required : 1 |
||||||
|
5 |
851912-HOSE REFOULEMENT FUEL More informationQuantity required : 1 |
||||||
|
6 |
852254-TUYAN RETOUR PUMP FUEL More informationQuantity required : 1 |
||||||
|
7 |
AP8144343-CAP FUEL More informationQuantity required : 1 |
||||||
|
8 |
852749-RUBBER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/6/6/img/71166.jpg)
9 |
FITTING FUEL A DEUX VOIES OEM PIAGGIO COMMON A LA RANGE-AP8101944 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/7/8/0/2/img/37802.jpg)
10 |
INSERT FUEL TANK OEM APRILIA/MOTO GUZZI COMMON A LA RANGE-2B001203 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/2/4/img/71424.jpg)
11 |
O RING OF CANALISATION FUEL OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA ET MOTO-GUZZI-AP8120965 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/8/6/8/img/70868.jpg)
12 |
HOSE/FUEL HOSE (5. 5X10) OEM APRILIA-MOTO GUZZI COMMON A LA RANGE-896544 More informationQuantity required : 2 |
||||||
|
13 |
896570-HOSE More informationQuantity required : 2 |
||||||
|
14 |
860138-VALVE More informationQuantity required : 1 |
||||||
|
15 |
AP8104666-FITTING 3 VOIES More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/2/3/0/img/45230.jpg)
16 |
CLAMP HOSE (D 9. 6) OEM PIAGGIO COMMON A LA RANGE-AP8102811 More informationQuantity required : 2 |
||||||
|
17 |
GU06704700-FITTING More informationQuantity required : 1 |
