Vehicle Exploded View - APRILIA NA MANA 850 NA 850 Mana 2007-2011
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

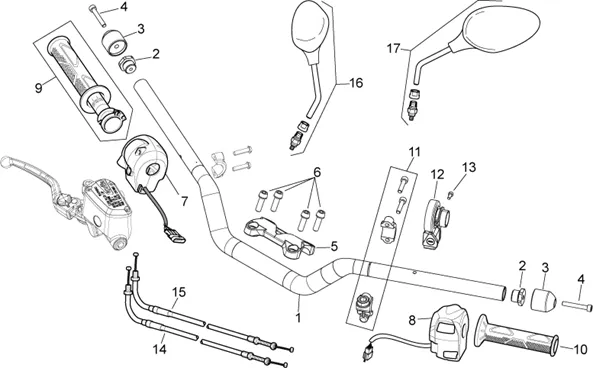

Chassis : 28.15 GUIDON - COMMANDES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/746/NA_850_Mana_2007-2011_28.15.PNG)
1 |
890446-HANDLEBAR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/7/1/img/71471.jpg)
2 |
CAP DE HANDLEBAR OEM PIAGGIO COMMON A LA RANGE MOTO-AP8121520 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/2/6/img/71226.jpg)
3 |
HANDLEBAR END OEM PIAGGIO APRILIA 750-900 SHIVER, 1000-1100 TUONO/MOTO-GUZZI BREVA, STELVIO, V7, V9, V100-AP8104509 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/3/8/img/50938.jpg)
4 |
AP8152003 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/9/1/6/0/img/39160.jpg)
5 |
CAVALIER UPPER DE HANDLEBAR OEM PIAGGIO APRILIA 750 SHIVER, DORSODURO, 1200 CAPONORD, DORSODURO-851628 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/1/0/4/0/img/51040.jpg)
6 |
SCREW BTR CHROME (8X25) OEM PIAGGIO COMMON A LA RANGE-AP8152486 More informationQuantity required : 4 |
||||||
|
7 |
893623-DISPOSITIF More informationQuantity required : 1 |
||||||
|
8 |
SWITCH - LEFT "PIAGGIO GENUINE PART" MOTO-GUZZI 1200 STELVIO -896108- More informationQuantity required : 1 |
||||||
|
9 |
AP8118537-CONTROL THROTTLE + GRIP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/9/9/9/6/img/39996_20260306170228.jpg)
10 |
GRIP REVETEMENT LEFT OEM APRILIA 1000-1100 RSV4 2011 >-856027 More informationQuantity required : 1 |
||||||
|
11 |
854561-BRACKET MIRROR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/9/5/4/4/img/39544.jpg)
12 |
DISPOSITIF DE CONTROL DE CHANGEMENT DE SPEED OEM PIAGGIO APRILIA 1000-1100 RSV-4, TUONO-852398 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/0/img/71910.jpg)
13 |
SCREW BTR (4X10) OEM PIAGGIO COMMON A LA RANGE-AP8152043 More informationQuantity required : 1 |
||||||
|
14 |
851897 - CABLE OUVERTURE GAZ More informationQuantity required : 1 |
||||||
|
15 |
851898 - TRASMISSION GAZ More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/4/2/img/71242.jpg)
16 |
RIGHT MIRROR OEM PIAGGIO APRILIA 750 SHIVER 2007 >/900 SHIVER 2017 >/DORSODURO 750 2008-2016/DORSODURO 900 2017-2018/MOTO GUZZI STELVIO 2008-2017-AP8104921 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/0/5/0/4/img/40504_20260306170242.jpg)
17 |
LEFT MIRROR OEM PIAGGIO APRILIA 750-1200 DORSODURO 2010 >, 1000 TUONO V4 2011 >, 1100 TUONO V4 2016 >, 1200 CAPONORD 2014 > TUONO 660 2021 >, TUONO 125 2017 >-858539 More informationQuantity required : 1 |
