Vehicle Exploded View - APRILIA NA MANA 850 NA 850 Mana 2007-2011
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

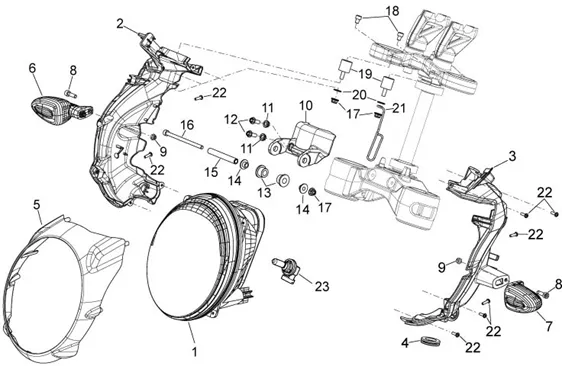

Chassis : 28.25 FEUX AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/746/NA_850_Mana_2007-2011_28.25.PNG)
1 |
851909-HEADLAMP FRONT More informationQuantity required : 1 |
||||||
|
1 |
859881-HEADLAMP FRONT More informationQuantity required : 1 |
||||||
|
1 |
860130-HEADLAMP FRONT More informationQuantity required : 1 |
||||||
|
2 |
851886-COVER HEADLAMP FRONT More informationQuantity required : 1 |
||||||
|
3 |
851885-COVER HEADLAMP FRONT More informationQuantity required : 1 |
||||||
|
4 |
856624 - BOUCHON More informationQuantity required : 1 |
||||||
|
5 |
Cadre phare |
||||||
|
5 |
85225300BM-CADRE HEADLAMP More informationQuantity required : 1 |
||||||
|
5 |
85225300XN6-CADRE HEADLAMP More informationQuantity required : 1 |
||||||
|
5 |
85225300XR7-CADRE HEADLAMP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/9/7/8/3/img/39783.jpg)
6 |
FRONT RIGHT INDICATOR OEM PIAGGIO APRILIA 850 MANA-853401 More informationQuantity required : 1 |
||||||
|
6 |
860688-INDICATOR AV RIGHT More informationQuantity required : 1 |
||||||
|
7 |
FRONT LEFT INDICATOR OEM PIAGGIO APRILIA 850 MANA-853402 More informationQuantity required : 1 |
||||||
|
7 |
860689 - CLIGNOTANT AVANT GAUCHE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/4/img/71824.jpg)
8 |
SCREW BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8150137 More informationQuantity required : 2 |
||||||
|
9 |
AP8150474-NUT BORGNE INOX More informationQuantity required : 2 |
||||||
|
10 |
851910-BRACKET HEADLAMP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/7/0/0/7/img/57007.jpg)
11 |
BUSH OEM PIAGGIO COMMON A LA RANGE-AP8221129 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/6/5/img/67365.jpg)
12 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-598839 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/5/1/img/71151.jpg)
13 |
RUBBER MOUNT/RUBBER EN T OEM PIAGGIO COMMON A LA RANGE-AP8101372 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/9/2/9/img/46929.jpg)
14 |
BUSH EN T (6. 30X10X7. 50) OEM APRILIA COMMON A LA RANGE-AP8121728 More informationQuantity required : 2 |
||||||
|
15 |
AP8134419-BUSH ATTACHE TANK More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/4/7/img/66547.jpg)
16 |
SCREW BTR (6X100) OEM PIAGGIO COMMON A LA RANGE-478171 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
17 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8152299 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/3/8/img/66338.jpg)
18 |
SCREW BTR (6X10) OEM PIAGGIO COMMON A LA RANGE-319446 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/5/1/img/73551.jpg)
19 |
RUBBER MOUNT OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-GU93222023 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/2/7/img/71927.jpg)
20 |
WASHER PLATE (6. 4X15X1) OEM PIAGGIO COMMON A LA RANGE-AP8152181 More informationQuantity required : 2 |
||||||
|
21 |
858150-GUIDE-CABLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
22 |
SCREW CRUCIFORME (3. 9X14) TARAUD FAIRING INOX OEM PIAGGIO COMMON A TOUTE LA RANGE MOTO-AP8150413 More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/8/9/8/img/67898.jpg)
23 |
AMPOULE/LAMPE 12V 55W H11 OEM PIAGGIO COMMON A LA RANGE-640754 More informationQuantity required : 2 |
