Vehicle Exploded View - APRILIA NA MANA 850 NA 850 Mana 2007-2011
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

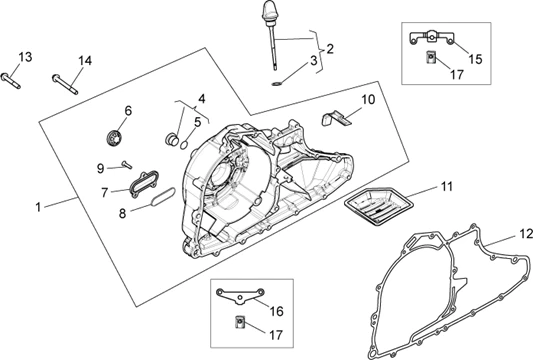

Moteur : 29.33 CARTER DE VOLANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/746/NA_850_Mana_2007-2011_29.33.PNG)
1 |
871886 - CARTER DE VOLANT More informationQuantity required : 1 |
||||||
|
1 |
880133 - COUVERCLE VOLANT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/5/4/8/img/70548.jpg)
2 |
CAP D'HUILE/JAUGE A OIL MANUELLE OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 400-500 CC-874707 More informationQuantity required : 1 |
||||||
|
3 |
Joint |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/1/0/img/68810.jpg)
4 |
CAP CONTROLE DE CALLAGE ON CASING WATER PUMP OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-8290405 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/8/2/8/0/img/158280.jpg)
5 |
O-RING OEM PIAGGIO COMMON A LA RANGE-1A009397 More informationQuantity required : 1 |
||||||
|
5 |
O-RING OEM PIAGGIO COMMON A LA RANGE-1A009397 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/8/8/img/66688.jpg)
6 |
JAUGE OIL OEM MOTO GUZZI V7, V9, V85 2021 >-485693 More informationQuantity required : 1 |
||||||
|
7 |
873087-PETIT COVER More informationQuantity required : 1 |
||||||
|
7 |
880137-COVER OIL More informationQuantity required : 1 |
||||||
|
8 |
168201 O-RING More informationQuantity required : 1 |
||||||
|
9 |
878867-SCREW More informationQuantity required : 3 |
||||||
|
10 |
843370-PROTECTOR CABLES More informationQuantity required : 1 |
||||||
|
11 |
833007-FILTER OIL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/0/4/0/img/69040.jpg)
12 |
GASKET OF COVER IGNITION OEM PIAGGIO GILERA GP 800 2007 >/APRILIA 850 SRV 2012 >-832990 More informationQuantity required : 1 |
||||||
|
13 |
874806 - VIS More informationQuantity required : 16 |
||||||
|
14 |
874745-SCREW More informationQuantity required : 2 |
||||||
|
15 |
854512-BRACKET More informationQuantity required : 1 |
||||||
|
16 |
854513-BRACKET INF. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
17 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375 More informationQuantity required : 2 |
