Vehicle Exploded View - APRILIA NA MANA 850 NA 850 Mana 2007-2011
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

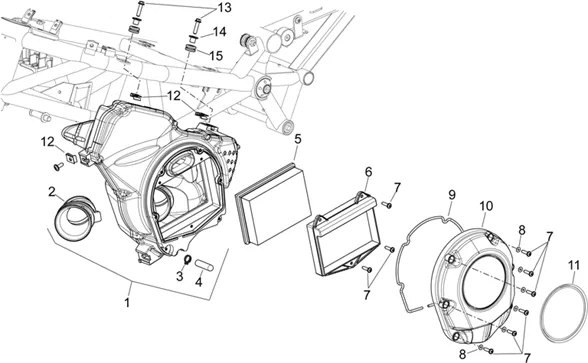

Chassis : 28.18 CORPS FILTRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/746/NA_850_Mana_2007-2011_28.18.PNG)
1 |
851853-BODY FILTER More informationQuantity required : 1 |
||||||
|
2 |
851858-SLEEVE D'ASPIRATION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/8/2/img/71182.jpg)
3 |
CLAMP SERRAGE TUBE OEM PIAGGIO COMMON A LA RANGE-AP8102520 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/0/0/5/img/72005.JPG)
4 |
CAPUCHON DE BODY DE FILTER OEM PIAGGIO COMMON ALA RANGE APRILIA/MOTO GUZZI-AP8161054 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/6/4/7/img/69647.jpg)
5 |
ELEMENT/MOUSSE DE AIR FILTER MAXI SCOOTER OEM PIAGGIO APRILIA 850 SRV 2012 >, 850 MANA 2007 >/GILERA 800 GP 2007 >-852944 More informationQuantity required : 1 |
||||||
|
6 |
851855-BRACKET FILTER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/0/img/71970.jpg)
7 |
SCREW PARKER (5X20) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-AP8152329 More informationQuantity required : 9 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/0/8/4/img/97084.jpg)
8 |
WASHER ELASTIC COURBE (5. 3X10X0. 5) OEM PIAGGIO COMMON A LA RANGE-AP8150272 More informationQuantity required : 6 |
||||||
|
9 |
890513-GASKET D. 4 More informationQuantity required : 1 |
||||||
|
10 |
85186000XEE - COUVERCLE CORPS FILTRE More informationQuantity required : 1 |
||||||
|
11 |
856184-BADGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
12 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/3/img/71943.jpg)
13 |
SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE-AP8152280 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/9/4/img/72294.jpg)
14 |
BUSH EN T (DIAMETER INNER MM 6) OEM PIAGGIO COMMON A LA RANGE-AP8221023 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/4/img/71384.jpg)
15 |
RUBBER/SPACER OEM PIAGGIO COMMON A LA RANGE-AP8120030 More informationQuantity required : 2 |
